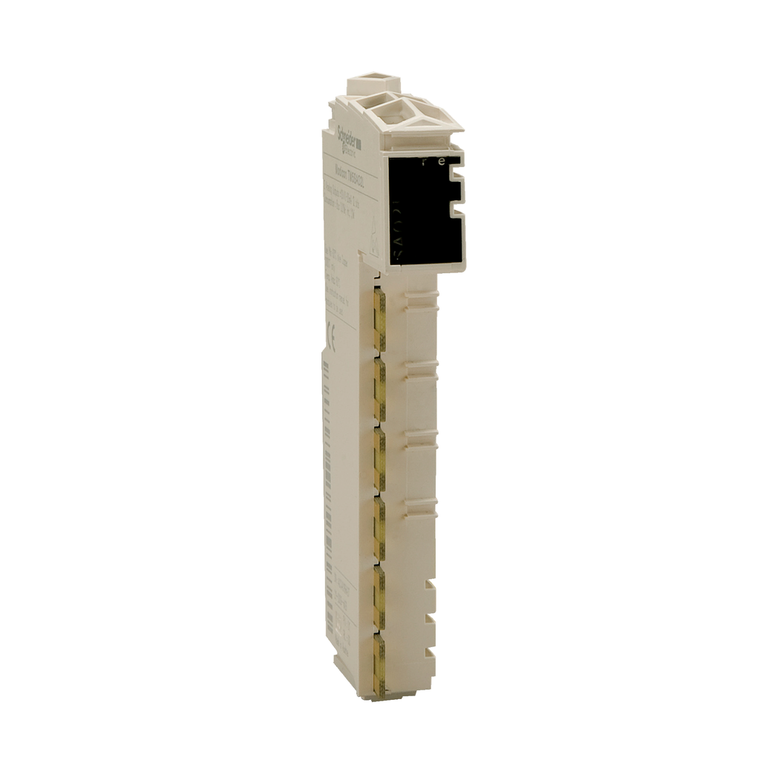

Schneider Electric TM5SAO2L Mod. 2Ao 10V/0-20Ma 12 Bits
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue output module provides 2 analogue outputs with 12bits + sign, ±10V, 0mA to 20mA resolution. It offers analogue output ranges from 0mA to 20mA, ±10V. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is an IP20 rated product. The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
- Ambient Air Temperature For Operation:
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Local Signalling:
- 1 LED green power supply || 1 LED red power supply || 2 LEDs yellow output status
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Vibration Resistance:
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Product Certifications:
- CSA || GOST-R || cULus || C-tick
- Surge Withstand:
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Non-Linearity:
- < 0.007 %FS current || < 0.007 %FS voltage
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Measurement Error:
- < 0.15 % of full scale +/- 10 V 25 °C || < 0.15 % of full scale 0...20 mA 25 °C
- China Rohs Regulation:
- X
- Product Or Component Type:
- analog output module
- Disturbance Radiated/Conducted:
- CISPR 11
- Ambient Air Temperature For Storage:
- -25-70 °C
- Minimum Output Impedance:
- 1 Ohm
- Sampling Duration:
- 200 µs
- Electromagnetic Compatibility:
- EN/IEC 61000-4-6
- Net Weight:
- 0.025 kg
- Supply:
- internal
- Analogue Output Resolution:
- 12 bits + sign, +/- 10 V || 12 bits, 0...20 mA
- Temperature Coefficient:
- 0.02 %FS/°C current || 0.02 %FS/°C voltage
- Marking:
- CE
- Pollution Degree:
- 2 IEC 60664
- Ip Degree Of Protection:
- IP20IEC 61131-2
- Load Impedance Ohmic:
- <= 500 Ohmcurrent)
- Sustainable Offer Status:
- Green Premium product
- Relative Humidity:
- 5-95 % without condensation
- [Us] Rated Supply Voltage:
- 24 V DC -15...20 %
- Product Compatibility:
- motion controller || logic controller
- Type Of Cable:
- shielded cable
- Storage Altitude:
- 0-3000 m
- Current Consumption:
- 2 mA 5 V DC bus || 46 mA 24 V DC input/output
- Response Time:
- <= 1 ms
- Environmental Disclosure:
- ENVPEP1511026EN
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Analogue Output Type:
- current 0...20 mA || voltage +/- 10 V
- Standards:
- CSA C22.2 No 142 || IEC 61131-2 || UL 508 || CSA C22.2 No 213
- Resistance To Fast Transients:
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Shock Resistance:
- 15 gn 11 ms
- Resistance To Electrostatic Discharge:
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Isolation:
- 500 Vrms AC insulation between channel and bus || no insulation between channels
- Range Of Product:
- Modicon TM5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1511026EN
- Resistance To Electromagnetic Fields:
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
- Mercury Free:
- Yes
- Range Compatibility:
- Modicon LMC058 || Modicon M258
- Pvc Free:
- Yes
- Maximum Power Dissipation In W:
- 1.11 W
- Color:
- White
- Analogue Output Number:
- 2
- Measurement Resolution:
- 4.882 mV, +/- 10 V || 9.766 µA, 0...20 mA
- Catalog:
- View
- Datasheet:
- View
