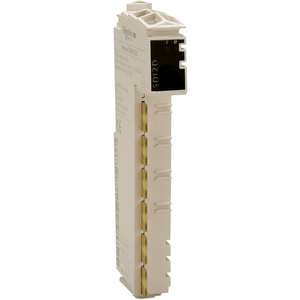

Schneider Electric TM5SDM8DTS Mod. 24Vdc 4Di/4Do Timestamp 1 Wire

Schneider Electric TM5SDM8DTS Mod. 24Vdc 4Di/4Do Timestamp 1 Wire

Schneider Electric
SKU:
TM5SDM8DTS
|
UPC:
3606480908316
Availability:
Contact us to confirm availability and lead times.
$450.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides ' discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 2mA at 5V DCbus, 62.5mA at 24V DC input/output, a maximum power dissipation of 1.51W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 1500V AC for 1min. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.022kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Sercos bus interface module. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Maximum Supply Current For Sensors:
600 mA
Maximum Leakage Current:
25 µA when switched off
Pollution Degree:
2 IEC 61131-2
Discrete Input Voltage:
24 V
Maximum Voltage Drop:
<0.9 V at 0.1 A output
Range Of Product:
Modicon TM5
Product Or Component Type:
discrete I/O module
Discrete Output Number:
4
Discrete Output Logic:
source
Operating Altitude:
0...6561.68 ft (0...2000 m)
Standards:
UL 508 || CSA C22.2 No 142 || IEC 61131-2
Discrete Input Voltage Type:
DC
Input Filtering:
>= 2 µs hardware
Output Voltage:
24 V DC
Output Voltage Limits:
20.4...28.8 V
Current Consumption:
2 mA 5 V DC bus || 62.5 mA 24 V DC input/output
Peak Output Current:
0.4 A
Discrete Output Type:
transistor
Discrete Input Logic:
sink
Storage Altitude:
0-3000 m
Discrete Input Current:
1.3-1.3 mA
Electromagnetic Compatibility:
electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 || electrical fast transient/burs
Product Compatibility:
PacDrive LMC Pro 2 || PacDrive LMC Pro || PacDrive LMC Eco
Switching Frequency:
<= 16 kHz resistive
Electrical Connection:
1 wire
Isolation:
no insulation between channels || 500 Vrms AC insulation between channel and bus
Range Compatibility:
PacDrive LMC motion controller
Maximum Power Dissipation In W:
1.51 W
Relative Humidity:
5-95 % without condensation
Shock Resistance:
15 gn 11 ms
Maximum Current Per Output Common:
0.4 A
Response Time:
<= 2 µs from state 0 to state 1 output || <= 2 µs from state 1 to state 0 output
Ip Degree Of Protection:
IP20IEC 60529
Product Certifications:
EAC || cULus || CE || C-tick
Protection Type:
overload protection || short-circuit protection || inductive overvoltage
Net Weight:
0.025 kg
Current Per Channel:
0.1 A
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Input Impedance:
18.4 kOhm
Color:
White
Local Signalling:
1 LED green power supply || 1 LED red power supply || 8 LEDs input/output status
Ambient Air Temperature For Operation:
-10-60 °C with derating factor horizontal installation) || -10-50 °C with derating factor vertical installation)
Discrete Input Number:
4
Ambient Air Temperature For Storage:
-40-70 °C
Input Voltage Limits:
20.4...28.8 V
