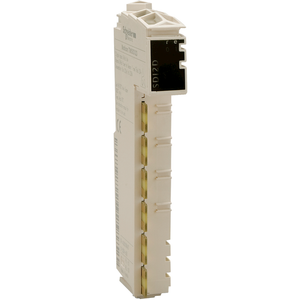

Schneider Electric TM5SDO4TFS Mod. Fs 4Do 24Vdc Tr 0.5A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM5SDO4TFS Mod. Fs 4Do 24Vdc Tr 0.5A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM5SDO4TFS

UPC:

3.59586E+12

MPN:

Condition:

New

Toxic Heavy Metal Free:

Yes

Isolation:

500 Vrms AC insulation between channel and bus || no insulation between channels

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Electromagnetic Compatibility:

electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2 || conducted and radiated emissions CISPR 11 || electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, 10 V/m 80...2000

Current Per Channel:

0.5 A

Discrete Output Type:

solid state

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Output Voltage Limits:

20.4...28.8 V

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Safety Reliability Data:

MTTFd > 100 years || PFD < 1E-5 || PFH < 1E-9

Maximum Current Per Output Common:

0.0833333333333333

Circularity Profile:

ENVEOLI1511026EN

Ip Degree Of Protection:

IP20EN 60529

Electrical Connection:

2 wires

Storage Altitude:

0-3000 m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Net Weight:

0.025 kg

Peak Output Current:

0

Product Or Component Type:

safety dc discrete output module

Range Of Product:

Modicon TM5

Safety Level:

SIL 3 IEC 61508 || SIL 3 IEC 62061 || PL = e EN 13849-1

Warranty:

18 months

Discrete Output Logic:

source

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Leakage Current:

10 µA when switched off

Relative Humidity:

5-95 % without condensation

Shock Resistance:

15 gn 11 ms

Operating Altitude:

0...6561.68 ft (0...2000 m)

Vibration Resistance:

1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail

Marking:

CE

Output Voltage:

24 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Number:

4

Local Signalling:

1 LED green power supply || 1 LED red power supply || 2 LEDs red safety status || 4 LEDs red/orange output status

Environmental Disclosure:

ENVPEP1511026EN

Switching Frequency:

<= 500 Hz resistive

Sustainable Offer Status:

Green Premium product

Maximum Power Consumption In W:

0.25 W bus || 1.3 W internal

Color:

Red

Standards:

IEC 61131-2 || IEC 61508 || IEC 62061 || UL 508 || CSA C22.2 No 142 || EN 13849-1

Pollution Degree:

2 IEC 60664

Range Compatibility:

PacDrive LMC motion controller

Product Certifications:

GOST-R || CSA || cULus

Product Compatibility:

PacDrive LMC Pro 2 || PacDrive LMC Pro || PacDrive LMC Eco

Ambient Air Temperature For Operation:

-10-50 °C vertical installation) || -10-55 °C horizontal installation)

Protection Type:

short-circuit protection || overload protection
