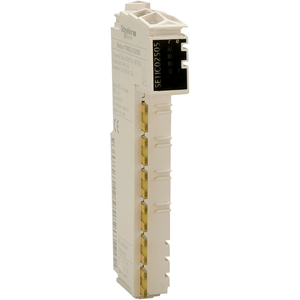

Schneider Electric TM5SE1SC10005 Mod. 1Hsc Ssi 1Mb 5Vdc

Schneider Electric TM5SE1SC10005 Mod. 1Hsc Ssi 1Mb 5Vdc

Schneider Electric
SKU:
TM5SE1SC10005
|
UPC:
3595864074863
Availability:
Contact us to confirm availability and lead times.
$610.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 1MHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Pollution Degree:
2 IEC 60664
Marking:
CE
Rohs Exemption Information:
Yes
Counting Frequency:
1 MHz
Counter Inputs Resolution:
32 bits
Pvc Free:
Yes
Storage Altitude:
0-3000 m
Input Resistance:
7.19 kOhm
Standards:
CSA C22.2 No 213 || IEC 61131-2 || UL 508 || CSA C22.2 No 142
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Modicon TM5
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Disturbance Radiated/Conducted:
CISPR 11
Current Consumption:
2 mA 5 V DC bus || 63 mA 24 V DC input/output
Sustainable Offer Status:
Green Premium product
Encoder Type:
1 absolute encoder
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Ambient Air Temperature For Operation:
0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
Circularity Profile:
ENVEOLI1511026EN
Product Compatibility:
logic controller || motion controller
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Surge Withstand:
0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Maximum Cycle Time:
2 ms
Range Compatibility:
Modicon LMC058 || Modicon M258
Mercury Free:
Yes
Ip Degree Of Protection:
IP20IEC 61131-2
Ambient Air Temperature For Storage:
-25-70 °C
Discrete Input Logic:
sink
Environmental Disclosure:
ENVPEP1511026EN
Operating Altitude:
0...6561.68 ft (0...2000 m)
Product Certifications:
GOST-R || C-tick || CSA || cULus
Relative Humidity:
5-95 % without condensation
China Rohs Regulation:
X
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Discrete Input Number:
1
Shock Resistance:
15 gn 11 ms
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Discrete Input Voltage:
24 V DC
Input Compatibility:
1 absolute encoder (5 V)
Maximum Power Dissipation In W:
1.51 W
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Function Of Module:
2 x 24 V DC sink auxiliary inputs || 24 V DC encoder power supply
Discrete Input Current:
3.3 mA 24 V
Product Or Component Type:
counter module
Isolation:
500 Vrms AC insulation between channel and bus
