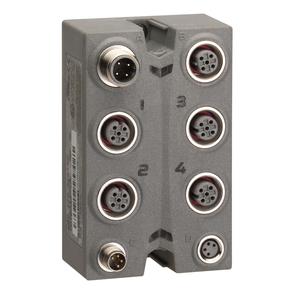

Schneider Electric TM7BAM4CLA Ip67 Exp. Block 2Ai/2Ao/12B,0-20Ma/M12

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM7BAM4CLA Ip67 Exp. Block 2Ai/2Ao/12B,0-20Ma/M12

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM7BAM4CLA

UPC:

3.59586E+12

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Range Compatibility:

Modicon LMC058 || Modicon M258

Enclosure Material:

Plastic

Analogue Output Type:

current

Vibration Resistance:

7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3

Ambient Air Temperature For Storage:

-25-85 °C

Ip Degree Of Protection:

IP67 conforming to IEC 61131-2

Analogue Input Range:

0...20 mA

Analogue Output Number:

2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1409005EN

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1409005EN

Product Or Component Type:

analog I/O expansion block

Net Weight:

0.2 kg

Storage Altitude:

0-3000 m

Disturbance Radiated/Conducted:

CISPR 11

Local Signalling:

for bus diagnostic 2 LEDs || for sensor/actuator power supply status 2 LEDs

Sensor Power Supply:

24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power supply) || 1 kV IEC 61000-4-4 input/output) || 1 kV IEC 61000-4-4 shielded cable)

Input/Output Number Of Splitter Box:

2 I + 2 O

Analogue Output Resolution:

12 bits

Analogue Input Type:

current

[Ue] Rated Operational Voltage:

24 V DC

Surge Withstand:

1 kV power supply (common mode) IEC 61000-4-5 || 0.5 kV power supply (differential mode) IEC 61000-4-5 || 1 kV unshielded links (common mode) IEC 61000-4-5 || 0.5 kV unshielded links (differential mode) IEC 61000-4-5 || 1 kV shielded links (common mo

Input/Output Number:

4

Resistance To Electrostatic Discharge:

6 kV in contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2

Marking:

CE

Shock Resistance:

30 gn 11 ms IEC 60721-3-5 Class 5M3

Resistance To Electromagnetic Fields:

10 V/m 0.08-2 Hz IEC 61000-4-3 || 1 V/m 2-2.7 Hz IEC 61000-4-3

Ambient Air Temperature For Operation:

-10-60 °C

Bus Type:

TM7 bus

Reach Free Of Svhc:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Analogue Input Number:

2

Electrical Connection:

1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 4 female connectors M12 - A coding - 5 ways actuator

Standards:

IEC 61131-2

Operating Altitude:

0...6561.68 ft (0...2000 m)

Range Of Product:

Modicon TM7

Electromagnetic Compatibility:

EN/IEC 61000-4-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Relative Humidity:

5-95 % without condensation or dripping water

Pvc Free:

Yes

Fixing Mode:

by 2 screws

Product Certifications:

cURus || C-tick || GOST-R || ATEX II 3g EEx nA II T5

Pollution Degree:

2 IEC 60664

Toxic Heavy Metal Free:

Yes

Analogue Input Resolution:

12 bits

Analogue Output Range:

0...20 mA

Operating Position:

any position

Rohs Exemption Information:

Yes

Warranty:

18 months

Catalog:

View

Datasheet:

View
