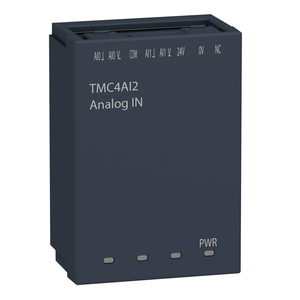

Schneider Electric TMC4PACK01 Cartridge M241-Packaging 2 Analog Input

Schneider Electric TMC4PACK01 Cartridge M241-Packaging 2 Analog Input

Schneider Electric
SKU:
TMC4PACK01
|
UPC:
3606480649196
Availability:
Contact us to confirm availability and lead times.
$316.88
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
cartridge M241 - packaging 2 analog inputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for packaging with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.
Additional Information
Depth:
21 mm
Analogue Input Type:
current 4...20 mA || current 0...20 mA || voltage 0...10 V
Rohs Exemption Information:
Yes
Product Specific Application:
packaging
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1403017EN
Temperature Drift:
+/- 0.006 %FS/°C
Maximum Cable Distance Between Devices:
twisted shielded pairs cable <30 m input
Analogue Input Number:
2
Repeat Accuracy:
+/- 0.2 %FS
Lsb Value:
1 mV voltage 0...10 V || 2 µA current 0...20 mA || 2 µA current 4...20 mA
Sustainable Offer Status:
Green Premium product
Insulation:
between input and internal logic 500 V DC || non-insulated between inputs
Pvc Free:
Yes
Product Or Component Type:
analogue input cartridge
Range Of Product:
Modicon M241
Height:
50 mm
Sampling Duration:
10 ms
Absolute Accuracy Error:
+/- 0.2 % of full scale at 25 °C
Permissible Continuous Overload:
40 mA current || 30 V voltage
Product Compatibility:
Modicon M241C
Width:
34 mm
Cross Talk:
80 dB
Immunity To Microbreaks:
10 ms
Net Weight:
0.055 kg
Analogue Input Resolution:
16 bits
Non-Linearity:
+/- 0.05 %FS
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Supply Voltage Limits:
20.4-28.8 V
Circularity Profile:
ENVEOLI1403017EN
Electrical Connection:
1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for inputs and supply
Type Of Cable:
twisted shielded pairs cable
Local Signalling:
for PWR 1 LED (green)
Input Impedance:
<= 250 Ohm current || >= 1 MOhm voltage
