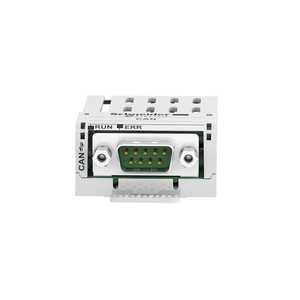

Schneider Electric TMSCO1 Smart Module Canopen - 1 Subd9

Schneider Electric TMSCO1 Smart Module Canopen - 1 Subd9

Schneider Electric
SKU:
TMSCO1
|
UPC:
3606489604240
Availability:
Contact us to confirm availability and lead times.
$362.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This smart communication module for Modicon M262 logic/motion controllers is designed to provide 1 CANopen master access to the controllers. TMSCO1 smart communication module integrates M262 controllers in CANopen architectures, ensures communication with devices. It figures one CANopen port for CANopen master communication and supports up to 63 slaves. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. CANopen link can be configured between 20kbps and 1Mbit/s and supports up to 63 slaves. It is possible to connect one CANopen smart communication modules on a logi/motion controller, the power supply is embedded on the communication bus. It measures 30mm width, 88mm depth, and 100mm height. It weighs 0.150kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSCO1 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.
Additional Information
Resistance To Fast Transients:
2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
Storage Altitude:
0-3000 m
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Pvc Free:
Yes
China Rohs Regulation:
X
Vibration Resistance:
3.5 mm 2-8.4 Hz symmetrical rail || 1 gn 8.4-200 Hz symmetrical rail || 3.5 mm 2-8.4 Hz panel mounting || 1 gn 8.4-200 Hz panel mounting
Product Or Component Type:
smart communication module
Operating Altitude:
0...6561.68 ft (0...2000 m)
Range Of Product:
Modicon M262
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Range Compatibility:
Modicon M262
Width:
30 mm
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Circularity Profile:
ENVEOLI1904005EN
Mercury Free:
Yes
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-4 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Standards:
UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213 || ANSI/ISA 12-12-01 || IEC 61131-2
Ambient Air Temperature For Storage:
-40-85 °C
Shock Resistance:
15 gn 11 ms
Current Consumption:
50 mA 24 V
Product Certifications:
CE || cULus || RCM || EAC (pending) || Achilles
Services:
maximum 63 slave nodes
Height:
100 mm
Rohs Exemption Information:
Yes
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV on air IEC 61000-4-2
Ip Degree Of Protection:
IP20
Electromagnetic Emission:
conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBµV/m A30-230 kHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power line
Pollution Degree:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
for PWR 1 LED (green) || for MOD STS 1 LED (green/red) || for CAN RUN 1 LED (green) || for CAN ERR 1 LED (red)
Communication Port Protocol:
CANopen
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Depth:
88.3 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Module Per Plc:
1 maximum per logic controller || 1 maximum per motion controller
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-20-60 °C horizontal installation || -20-50 °C vertical installation
Environmental Disclosure:
ENVPEP1904005EN
