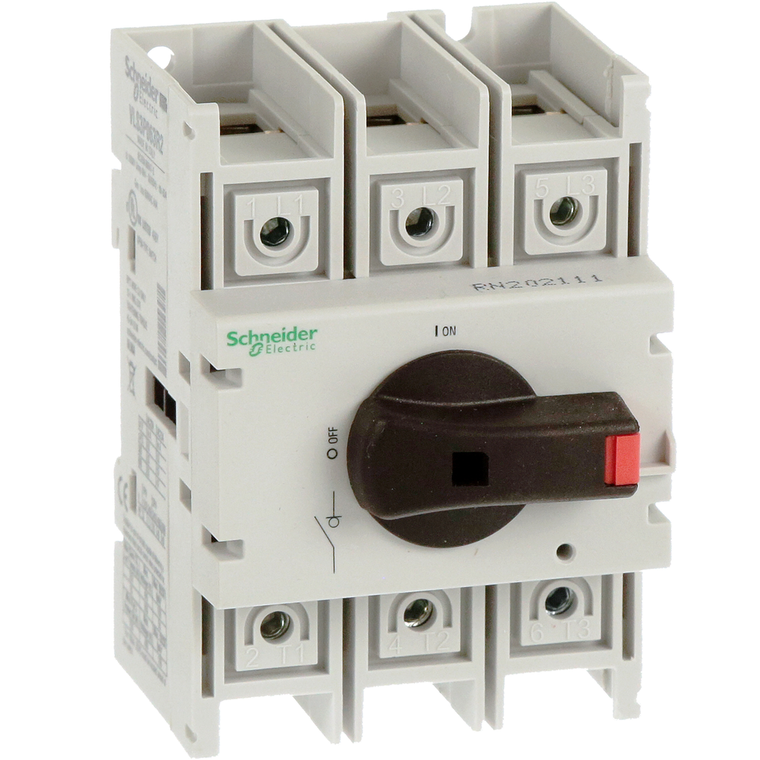

Schneider Electric VLS3P063R2 Disconnect switch, TeSys VLS, body switch, 60A, 40HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount

Schneider Electric VLS3P063R2 Disconnect switch, TeSys VLS, body switch, 60A, 40HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount

Schneider Electric
SKU:
VLS3P063R2
$103.04
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This disconnect switch is rated 60A per UL. It has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 20HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 60A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 30 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Additional Information
Product Certifications:
cULus || GL
Marking:
0 - 1
Rated Conditional Short-Circuit Current:
50 kA 400 V 63 A gG
Mounting Support:
back DIN rail
Compatibility Code:
VLS
[Icm] Rated Short-Circuit Making Capacity:
3550 A 690 V
[Ithe] Conventional Enclosed Thermal Current:
63 A
Making Capacity:
94.5 A 690 V AC-21A || 189 A 690 V AC-22A || 630 A 690 V AC-23A
Fixing Mode:
by clips back
Suitability For Isolation:
yes
Height:
75 mm
Connections - Terminals:
power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Tightening Torque:
power circuit 5-6 N.m screw clamp terminals
Eu Rohs Directive:
Compliant
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Color:
Gray
Control Type:
rotary handle
Rotary Handle Mounting Style:
direct
Net Weight:
0.365 kg
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Toxic Heavy Metal Free:
Yes
Country of Origin:
Italy
Depth:
100 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rated Operational Power In W:
30 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
Handle Front Plate Colour:
grey
Weight:
0.365 kg
Product Or Component Type:
switch body
Device Short Name:
VLS3P
Standards:
UL98 || CSA C22.2 No 4 || IEC 60947-3
Width:
70 mm
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-25-55°C
Breaking Capacity:
94.5 A 690 V AC-21A) || 189 A 690 V AC-22A) || 504 A 690 V AC-23A)
Mechanical Robustness:
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 508
[Ith] Conventional Free Air Thermal Current:
63 A (at 55°C)
Handle Colour:
black
Network Frequency:
50/60 Hz
Poles Description:
3P
Intermittent Duty Class:
class 120 - 60 %
Mechanical Durability:
30000 cycles
Contacts Type And Composition:
3 NO
Network Type:
AC
[Ie] Rated Operational Current:
60 A Ue: 600 V UL98 || 63 A AC-21A Ue: 400 V || 63 A AC-21A Ue: 500 V || 63 A AC-21A Ue: 690 V || 63 A AC-22A Ue: 400 V || 63 A AC-22A Ue: 500 V || 63 A AC-22A Ue: 690 V || 63 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
Range:
TeSys
Electrical Durability:
