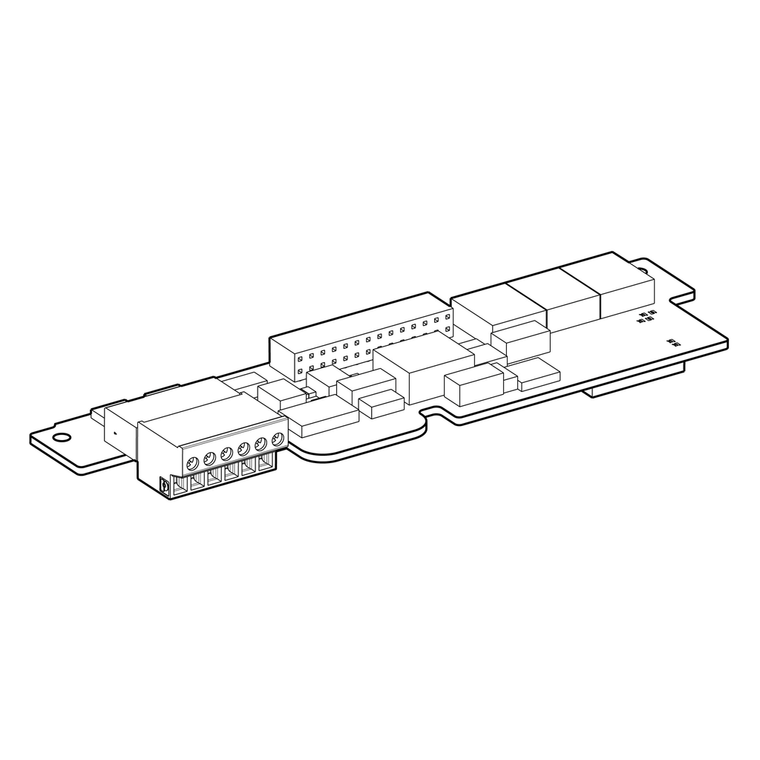

Schneider Electric VW3A3407 Interface Card For 24V Push Pull Encoder

Schneider Electric VW3A3407 Interface Card For 24V Push Pull Encoder

Schneider Electric
SKU:
VW3A3407
|
UPC:
3389118067264
Availability:
Contact us to confirm availability and lead times.
$104.03
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Input Impedance:
1000 Ohm
Rohs Exemption Information:
Yes
Range Of Product:
Altivar
Environmental Disclosure:
ENVPEP2010011EN
Circularity Profile:
N/A
Mercury Free:
Yes
Input Signal:
A || B || compliment of A || compliment of B/AB/A
Voltage State 0 Guaranteed:
<= 1.5 V
Voltage State 1 Guaranteed:
> 11.5...< 25 V
Maximum Supply Current:
0.175 A
[Us] Rated Supply Voltage:
24 V DC 20-30 V)
Product Or Component Type:
encoder interface card
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Operating Frequency:
300 kHz
China Rohs Regulation:
X
Number Of Pulses Per Revolution:
10000 ATV71H......383 || 5000 all ATV61 drives || 5000 ATV71H...M3 || 5000 ATV71H...M3X || 5000 ATV71H...N4
Discrete Output Type:
push-pull
Protection Type:
overload protection || short-circuit protection
Range Compatibility:
Altivar 61Q || Altivar 71Q || Altivar 71 || Altivar 61 || Altivar Lift
Maximum Cable Distance Between Devices:
500 m
Warranty:
18 months
Electrical Connection:
terminal 0.2 mm² AWG 24) <500 m, encoder, 100 mA 14 V
