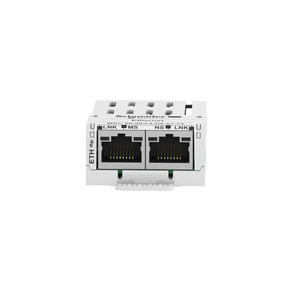

Schneider Electric VW3A3721 Ethernet Ip/Modbus Tcp /Md Link Electron

(No reviews yet) Write a Review
SKU:
VW3A3721
UPC:
3.60648E+12
Condition:
New
Topology:
daisy chain
Range Of Product:
Altivar
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Product Certifications:
ODVA || Achilles level 2
Web Server:
embedded HTTP server
Circularity Profile:
N/A
Pvc Free:
Yes
Mercury Free:
Yes
Communication Port Protocol:
MD-Link || EtherNet/IP || Modbus TCP
Web Services:
widgets (ID, control, data table, diagnostic, charts) || energy monitoring || customizable home page || save/restore drive configuration || Ethernet setting and diagnostic || pump function setting and monitoring || upgrade drive firmware || drive mon
Product Or Component Type:
communication module
Transmission Rate:
10/100 Mbps
Time Synchronisation Protocol:
SNTP
Range Compatibility:
Altivar Process ATV600 || Altivar Process Modular
Exchange Mode:
half duplex and full duplex
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Bus Profile:
CIP AC Drive || CiA 402
Communication Network Type:
IPv6 (internet protocol)
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2010006EN
Electrical Connection:
2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.2 kg
Communication Service:
SNMP agent Ethernet IP || Modbus TCP server Ethernet IP/Modbus TCP || Ethernet/IP adapter Ethernet IP || RSTP support Ethernet IP || FTP Ethernet IP || ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP || auto-MDIX Ethernet IP/Modbus TCP || 32
Display Type:
1 LED MS (Module Status) || 1 LED NS (Network Status) || 1 LED TX/RX (Transmit/Receive port 1) || 1 LED TX/RX (Transmit/Receive port 2)
Brochure:
View
Catalog:
View
Datasheet:
View
$780.60

Description

This EtherNet/IP, Modbus TCP, and MD-Link dual port module communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 20g.
