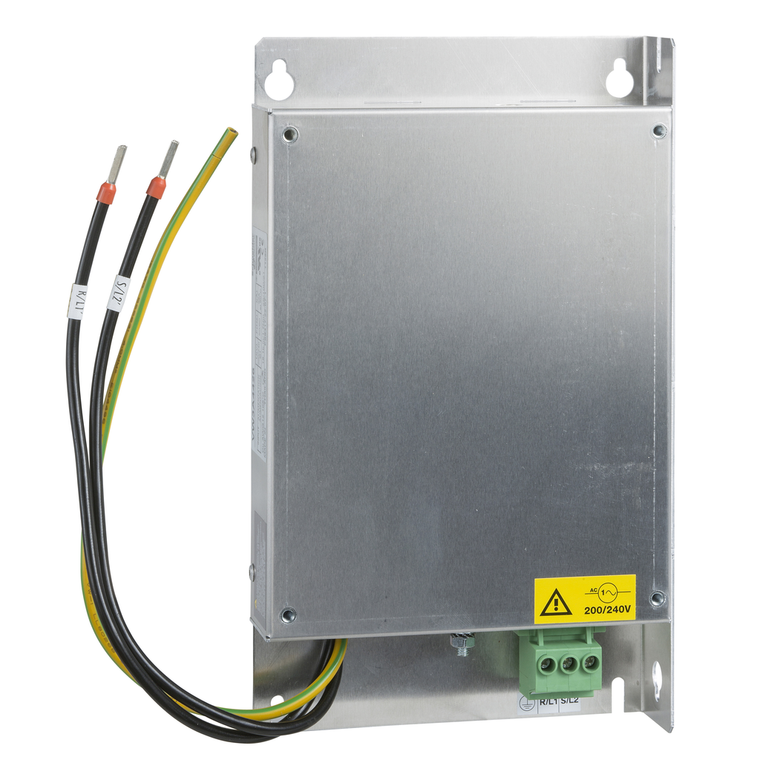

Schneider Electric VW3A4426 Emc Input Filter 1Ph 240V 24A

Schneider Electric VW3A4426 Emc Input Filter 1Ph 240V 24A

Schneider Electric
SKU:
VW3A4426
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$270.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Additional Information
Product Or Component Type:
EMC input filter
Network Rated Voltage:
200-240 V
Range Of Product:
Lexium || Altivar
Rohs Exemption Information:
Yes
Phase:
single phase
Range Compatibility:
Altivar 32 || Altivar Machine ATV320 || Lexium 28
Mercury Free:
Yes
Warranty:
18 months
Thermal Losses:
7.5 W
Line Rated Current:
23.9 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility:
LXM28A || ATV32, 200...240 V, 2.2 kW || variable speed drive ATV320...B 2.2 kW, 200...240 V, single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Tolerance:
15...10 %
Mounting Location:
at variable speed drive side
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Cable Distance Between Devices:
20 m IEC 61800-3 category C1 || 50 m IEC 61800-3 category C2
Net Weight:
1.13 kg
Toxic Heavy Metal Free:
Yes
Product Specific Application:
radio interference input filter
Emc Filter Compatibility:
type 026
Reach Free Of Svhc:
Yes
