Schneider Electric VW3A4551 Ac Chokes 10Mh 4A
Schneider Electric
$271.15
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

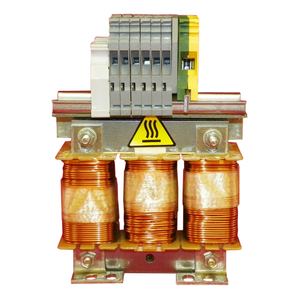

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
- Electrical Connection:
- terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
- Ambient Air Temperature For Storage:
- -25-70 °C
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Height:
- 135 mm
- Net Weight:
- 1.5 kg
- Operating Altitude:
- <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Standards:
- VDE 0160 level 1 || IEC 60076 (with HD398) || EN 50178
- Environmental Characteristic:
- 3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
- Width:
- 100 mm
- Reach Free Of Svhc:
- Yes
- Supply Frequency:
- 50...60 Hz
- Thermal Losses:
- 45 W
- Relative Humidity:
- 0-95 %
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- 45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
- Product Or Component Type:
- line/motor choke
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Line Rated Current:
- 0.166666666666667
- Ip Degree Of Protection:
- choke IP00 || terminals IP20
- Electrical Insulation Class:
- class F
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Value Of Inductance:
- 10 mH
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Range Of Product:
- Altivar
- Device Application:
- reduction of current harmonics
- Depth:
- 60 mm
- Range Compatibility:
- Altivar 61 || Altivar 312 || Altivar Process ATV900 || Altivar 32 || Altivar 312 Solar || Altivar Process ATV600 || Altivar 31C || Lexium 62 || Easy Altivar 310 || Altivar Machine ATV340 || Altivar Machine ATV320 || Altivar 71 || Altivar 12 || Easy A
- Toxic Heavy Metal Free:
- Yes
- Maximum Voltage Drop At Rated Load:
- 0.05
- Product Compatibility:
- ATV12H018F1 - motor choke - 1 per drive || ATV12H018M2 - motor choke - 1 per drive || ATV12H018M3 - motor choke - 1 per drive || ATV12H037F1 - motor choke - 1 per drive || ATV12H037M2 - motor choke - 1 per drive || ATV12H037M3 - motor choke - 1 per d
- Max Current:
- 1.65 x nominal current 60 s)
- Pollution Degree:
- 2 EN 50178
- Minimum Clearance Distance:
- 5.5 mm IEC 60664
- Leakage Distance:
- 11.5 mm IEC 60664
- Phase:
- three phase
