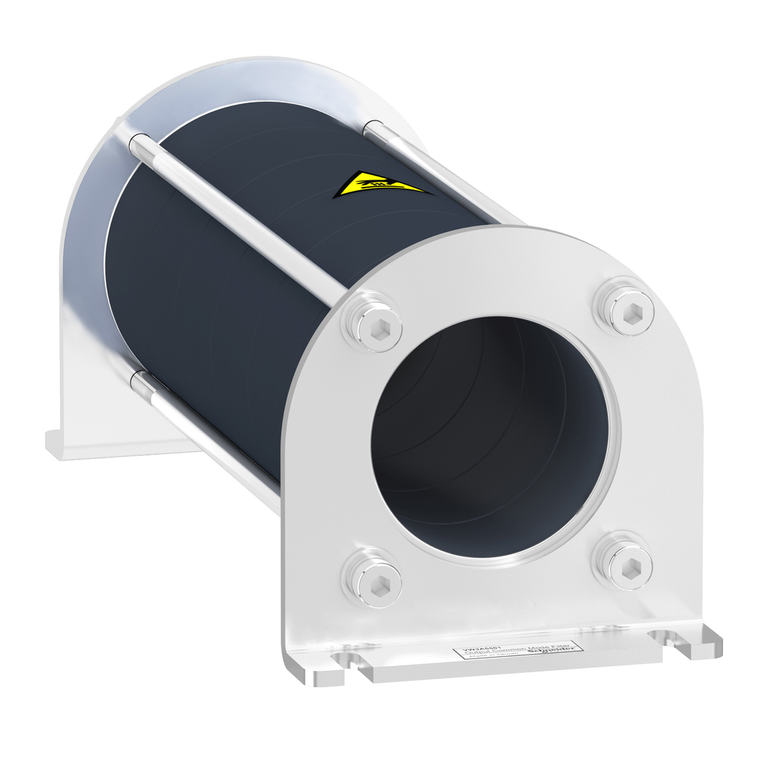

Schneider Electric VW3A5502 Ouput Common Mode Filter 6 Cores D1 Diam

Schneider Electric VW3A5502 Ouput Common Mode Filter 6 Cores D1 Diam

Schneider Electric
SKU:
VW3A5502
|
UPC:
3.60649E+12
$716.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
common mode filter for bearing current reduction, 219.6µH
Additional Information
Maximum Output Frequency:
100 Hz
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Relative Humidity:
5-95 % without condensation
Ambient Air Temperature For Operation:
-15-60 °C
Ambient Air Temperature For Storage:
-40-70 °C
Reach Free Of Svhc:
Yes
Width:
66 mm
Electrical Insulation Class:
class I
Net Weight:
0.66 kg
Maximum Motor Cable Length:
150 m(shielded cable)5.5-11 kW 380...480 V 1 || 300 m(shielded cable)0.75-4 kW 200...240 V 1 || 500 m(unshielded cable)5.5-5.5 kW 200...240 V 1 VW3A5501 || 500 m(shielded cable)5.5-5.5 kW 200...240 V 2 || 1000 m(unshielded cable)0.75-4 kW 200...240 V
Switching Frequency:
<= 10 kHz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Value Of Inductance:
219.6 µH
Product Or Component Type:
common mode output filter
Height:
163.8 mm
Mercury Free:
Yes
China Rohs Regulation:
X
Diameter:
37.1 mm 3-phase cable inside || 37.1 mm PE cable outside
Saturation Current:
1.1 A
Mechanical Robustness:
shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
Depth:
66 mm
Range Compatibility:
Altivar Process ATV900 || Altivar Process ATV600
Product Compatibility:
variable speed drive ATV630 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV650 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV930 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV950 wall mount, 0.75-11 k
