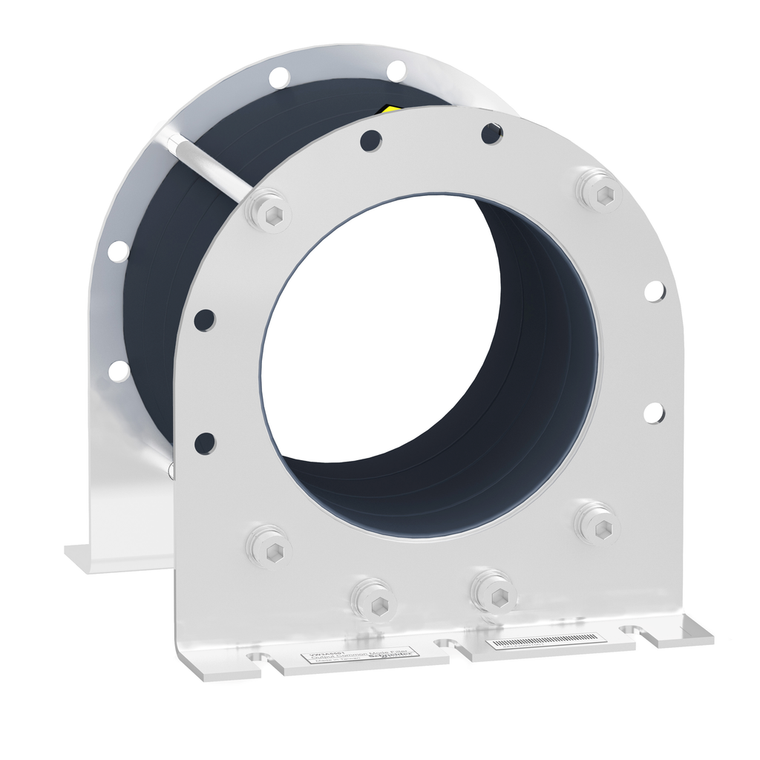

Schneider Electric VW3A5505 Ouput Common Mode Filter With 4 Cores D3

Schneider Electric VW3A5505 Ouput Common Mode Filter With 4 Cores D3

Schneider Electric
SKU:
VW3A5505
|
UPC:
3.60649E+12
$2,741.14
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
common mode filter for bearing current reduction - 183.2 µH
Additional Information
Switching Frequency:
<= 10 kHz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
Altivar Process ATV600 || Altivar Process ATV900
Maximum Motor Cable Length:
150 m(unshielded cable)110-160 kW 380...480 V 1 || 500 m(shielded cable)55-55 kW 200...240 V 1 VW3A5506 || 150 m(shielded cable)110-110 kW 380...480 V 1 || 300 m(shielded cable)130-160 kW 380...480 V 2 || 500 m(unshielded cable)110-160 kW 380...480 V
Depth:
196 mm
Product Or Component Type:
common mode output filter
Electrical Insulation Class:
class I
Net Weight:
6 kg
Mechanical Robustness:
shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
Ambient Air Temperature For Operation:
-15-60 °C
Ambient Air Temperature For Storage:
-40-70 °C
Height:
197 mm
Diameter:
123.9 mm 3-phase cable inside || 123.9 mm PE cable outside
Mercury Free:
Yes
China Rohs Regulation:
X
Relative Humidity:
5-95 % without condensation
Value Of Inductance:
183.2 µH
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Compatibility:
variable speed drive ATV630 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV650 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV930 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV950 wall mount, 110-160 k
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
191 mm
Rohs Exemption Information:
Yes
Saturation Current:
3.6 A
Maximum Output Frequency:
100 Hz
Toxic Heavy Metal Free:
Yes
