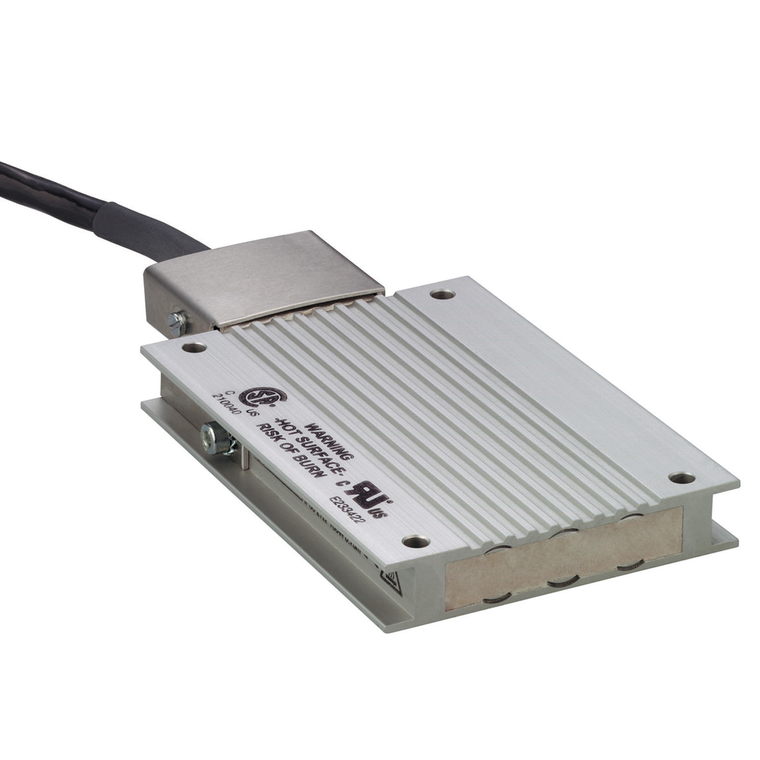

Schneider Electric VW3A7603R30 Braking Resistor Ip65 27Ohm 200W 3M

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A7603R30 Braking Resistor Ip65 27Ohm 200W 3M

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A7603R30

UPC:

3.38912E+12

MPN:

Condition:

New

Ip Degree Of Protection:

IP65

Continuous Power:

200 W

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Lexium 05 || Altivar 32 || Lexium 28 || Altivar Machine ATV320 || Lexium 52 || Lexium 32i || Lexium 32 || Lexium 15 || Easy Lexium 16

Ohmic Value:

27 Ohm

Toxic Heavy Metal Free:

Yes

China Rohs Regulation:

X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Altivar || Lexium

Product Compatibility:

ATV32HU22M2 || variable speed drive ATV320 2.2 kW, 200...240 V, single phase || motion servo drive LXM16D 0.75 kW, 200...230 V, single phase || motion servo drive LXM16D 1 kW, 200...230 V, single phase || motion servo drive LXM16D 1.5 kW, 200...230 V

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

0-50 °C

Warranty:

18 months

Product Or Component Type:

braking resistor

Average Power Available:

50 W 50 °C

Cable Length:

3 m

Net Weight:

1.2 kg

Energy Peak:

4300 J 480 V || 4900 J 400 V || 7400 J 230 V || 9700 J 115 V

Protection Type:

thermal protection via the servo drive

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-85 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
