Schneider Electric VW3A7730 Braking Resistor 100 Ohms 0,1 Kw Ip20
Schneider Electric
$202.65
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

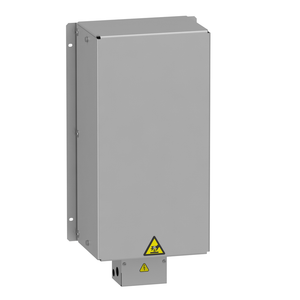

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
- Duty Cycle:
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ambient Air Temperature For Operation:
- 0-50 °C
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP20
- Width:
- 105 mm
- Net Weight:
- 1.5 kg
- Product Or Component Type:
- braking resistor
- Height:
- 295 mm
- Ohmic Value:
- 100 Ohm
- Protection Type:
- thermal protection via drive
- China Rohs Regulation:
- X
- Depth:
- 100 mm
- Product Compatibility:
- variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle || variable speed drive ATV930 wa
- Range Compatibility:
- Altivar Process ATV900 || Altivar Machine ATV340 || Altivar Machine ATV320 || Easy Altivar 310 || Easy Altivar 310L
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Connection:
- terminal <= 10 mm² / AWG 8 drive
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Average Power Available:
- 0.1 kW 50 °C
- Catalog:
- View
- Datasheet:
- View
