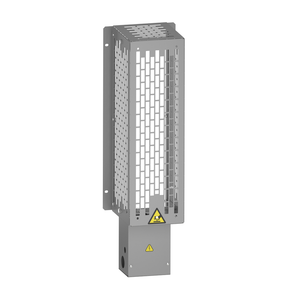

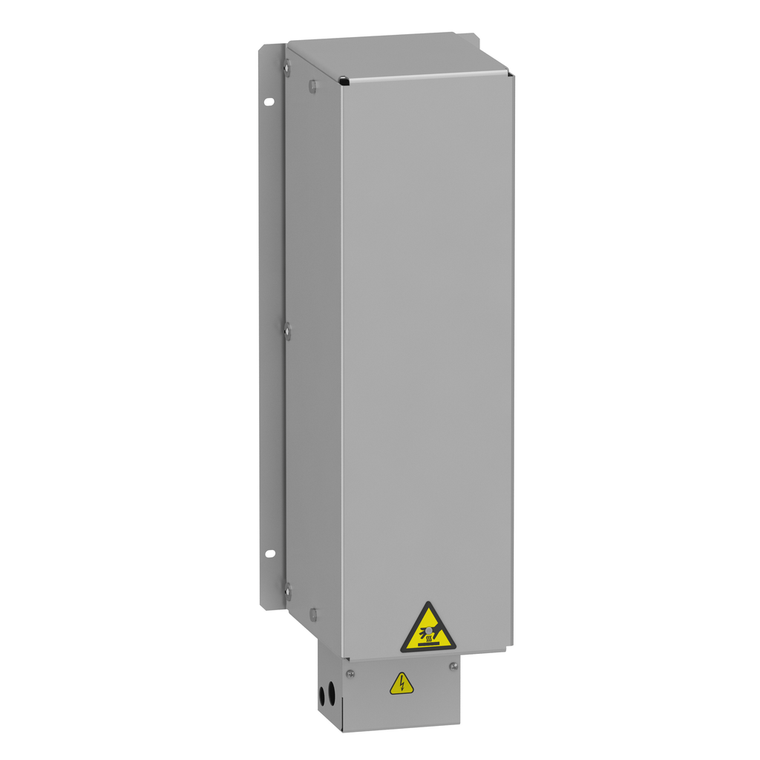

Schneider Electric VW3A7733 Braking Resistor 16 Ohms 0,96 Kw Ip20
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
- Width:
- 190 mm
- Ambient Air Temperature For Storage:
- -25-70 °C
- Protection Type:
- thermal protection via drive or temperature control switch 120 °C
- Range Compatibility:
- Altivar Machine ATV320 || Altivar Process ATV900 || Altivar Machine ATV340
- Height:
- 570 mm
- Product Or Component Type:
- braking resistor
- Reach Free Of Svhc:
- Yes
- Depth:
- 180 mm
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Net Weight:
- 3.8 kg
- Ohmic Value:
- 16 Ohm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Duty Cycle:
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s
- Ambient Air Temperature For Operation:
- 0-50 °C
- Product Compatibility:
- variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle || variable speed drive ATV930 wall
- Average Power Available:
- 1.1 kW 50 °C
- [Ue] Rated Operational Voltage:
- 24 V DC || 250 V AC
- Ip Degree Of Protection:
- IP20
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- terminal <= 10 mm² / AWG 8 drive || terminal <= 2.5 mm² / AWG 12 temperature control switch
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
