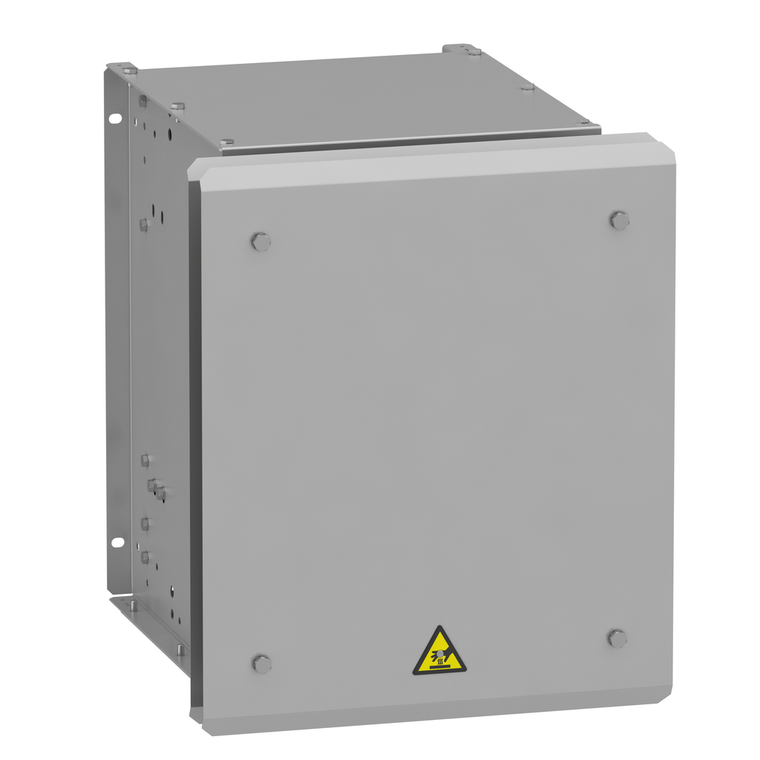

Schneider Electric VW3A7736 Braking Resistor 5 Ohms 1,9 Kw Ip23

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A7736 Braking Resistor 5 Ohms 1,9 Kw Ip23

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A7736

UPC:

3606480802300

MPN:

Condition:

New

Toxic Heavy Metal Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Duty Cycle:

light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s

China Rohs Regulation:

X

Range Compatibility:

Altivar Machine ATV320 || Altivar Process ATV900 || Altivar Machine ATV340

Electrical Connection:

terminal <= 2.5 mm² / AWG 12 temperature control switch || M10 bar wire drive

Width:

540 mm

Rohs Exemption Information:

Yes

Ohmic Value:

5 Ohm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Protection Type:

thermal protection via drive or temperature control switch 120 °C

Product Compatibility:

variable speed drive ATV930 wall mount 75 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 90 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 18.5 kW 200...240 V light cycle || variable speed drive ATV930 wall

[Ue] Rated Operational Voltage:

24 V DC || 250 V AC

Height:

485 mm

Reach Free Of Svhc:

Yes

Average Power Available:

1.9 kW 50 °C

Net Weight:

18 kg

Ip Degree Of Protection:

IP23

Ambient Air Temperature For Operation:

0-50 °C

Depth:

450 mm

Product Or Component Type:

braking resistor

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
