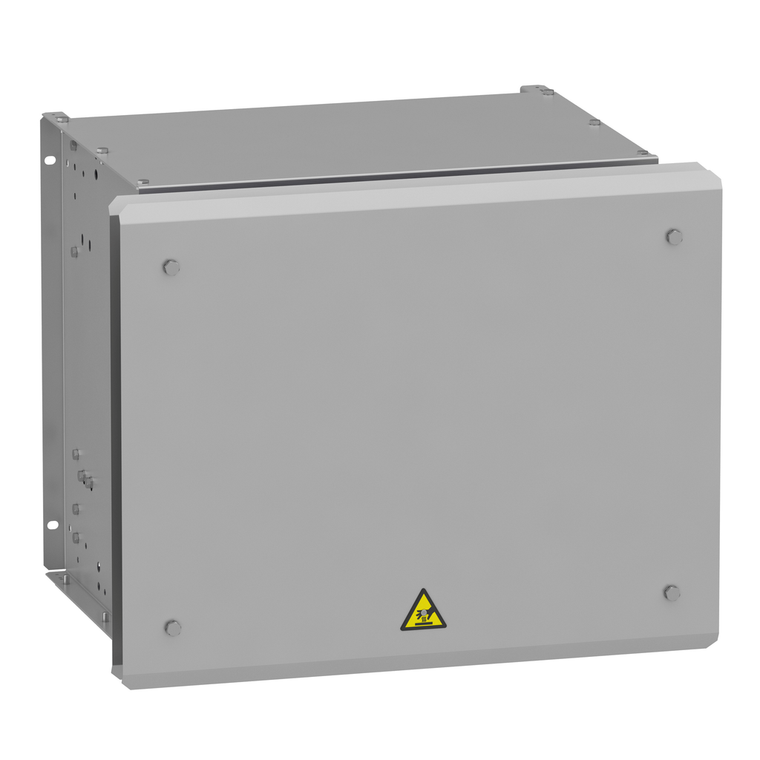

Schneider Electric VW3A7752 Braking Resistor 28 Ohms 5,1 Kw Ip23

Schneider Electric VW3A7752 Braking Resistor 28 Ohms 5,1 Kw Ip23

Schneider Electric
SKU:
VW3A7752
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$1,637.93
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 25kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Protection Type:
thermal protection via drive or temperature control switch 120 °C
Product Or Component Type:
braking resistor
Ohmic Value:
28 Ohm
Duty Cycle:
severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Product Compatibility:
variable speed drive ATV930 wall mount 11 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 15 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 4 kW 200...240 V severe cycle || variable speed drive ATV950 wall
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
27 kg
Mercury Free:
Yes
Average Power Available:
5.1 kW 50 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Compatibility:
Altivar Process ATV900 || Altivar Machine ATV340
Electrical Connection:
terminal <= 2.5 mm² / AWG 12 temperature control switch || M6 bar wire drive
China Rohs Regulation:
X
Height:
485 mm
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Width:
540 mm
Ambient Air Temperature For Storage:
-25-70 °C
Ambient Air Temperature For Operation:
0-50 °C
Depth:
650 mm
Ip Degree Of Protection:
IP23
[Ue] Rated Operational Voltage:
24 V DC || 250 V AC
