Schneider Electric VW3A95815 Ul Type 1 Conformity Kit For Atv320 S3F

Schneider Electric VW3A95815 Ul Type 1 Conformity Kit For Atv320 S3F

Schneider Electric
SKU:
VW3A95815
|
UPC:
3606480967191
Availability:
Contact us to confirm availability and lead times.
$67.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

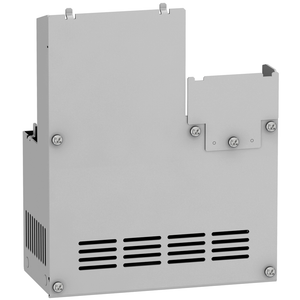

This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 3C (140mm/5.5in wide x 118mm/4.64in high, and 88mm/3.46in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U30M3C and ATV320U40M3C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Additional Information
Accessory / Separate Part Type:
kit for UL type 1 conformity
Accessory / Separate Part Category:
mounting and fixing accessories
Kit Composition:
mechanical device
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Standards:
UL Type 1
China Rohs Regulation:
X
Range Compatibility:
Altivar Machine ATV320
Mounting Location:
underside of drive
Product Compatibility:
variable speed drive ATV320...C 3 kW, 200...240 V, three phase || variable speed drive ATV320...C 4 kW, 200...240 V, three phase
Reach Free Of Svhc:
Yes
Accessory / Separate Part Destination:
variable speed drive
Rohs Exemption Information:
Yes
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Of Product:
Altivar
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Catalog:
View
Datasheet:
View
