Schneider Electric VW3A9805 Rail Din Kit (For Power Size 2C And 2F)
Schneider Electric
$108.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3A9805 Rail Din Kit (For Power Size 2C And 2F)

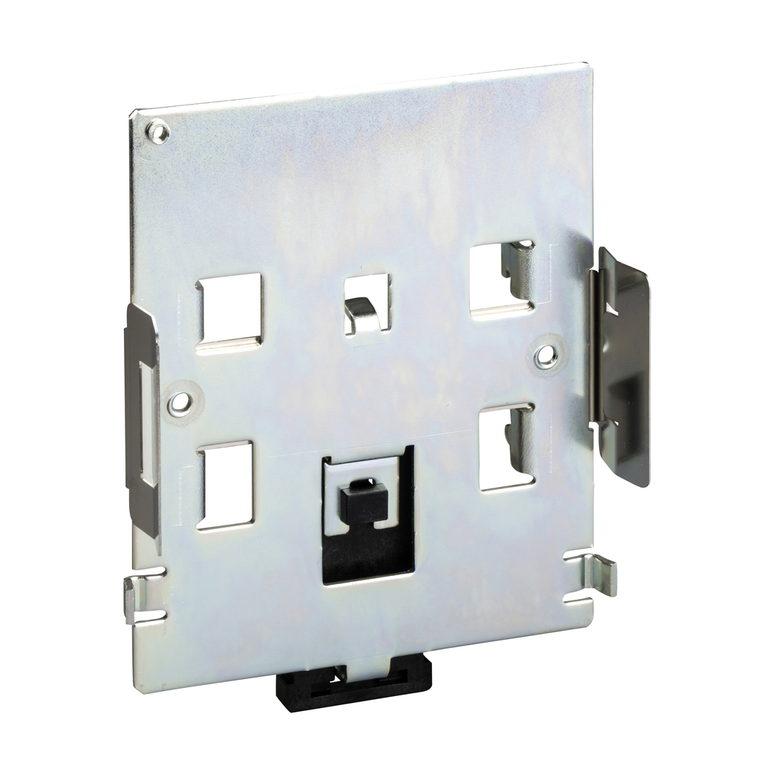

This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. Its dimensions are 105mm wide, 144mm high, and 40mm deep. It weighs 0.385kg. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.
- Product Compatibility:
- ATV12HU15M2 || ATV312HU11M2 || ATV312HU11M3 || ATV312HU11N4 || ATV312HU15M2 || ATV312HU15M3 || ATV312HU15N4 || ATV312HU15S6 || ATV312HU22M3 || variable speed drive ATV320...C 1.1 kW, 200...240 V, single phase || variable speed drive ATV320...C 1.5 kW
- Accessory / Separate Part Destination:
- variable speed drive
- Net Weight:
- 0.385 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Altivar
- Accessory / Separate Part Category:
- mounting and fixing accessories
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Support:
- 35 mm symmetrical DIN rail
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Accessory / Separate Part Type:
- mounting plate
- Range Compatibility:
- Altivar 312 || Altivar 12 || Altivar 312 Solar || Altivar Machine ATV320
- Warranty:
- 18 months
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
