Schneider Electric VW3L10100N10 Lxm Acc-Insert Set, Cable Grommet 10Pcs.

(No reviews yet) Write a Review
SKU:
VW3L10100N10
UPC:
3.38912E+12
Condition:
New
Range Of Product:
Lexium integrated drive
Mercury Free:
Yes
Net Weight:
0.213 kg
Cable Outer Diameter:
3-9 mm
Quantity Per Set:
set of 10
Accessory / Separate Part Type:
connection accessories
Cable Entry:
5 protective cable sleeves on each insert
Toxic Heavy Metal Free:
Yes
Reach Free Of Svhc:
Yes
Accessory / Separate Part Category:
connection accessories
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Pvc Free:
Yes
Product Or Component Type:
cable entry for signals and power supply cable
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Accessory / Separate Part Destination:
for integrated drives
Kit Composition:
2 inserts with cable entries
Warranty:
18 months
  • Schneider Electric VW3L10100N10 Lxm Acc-Insert Set, Cable Grommet 10Pcs.
  • Schneider Electric VW3L10100N10 Lxm Acc-Insert Set, Cable Grommet 10Pcs.
$209.93

Description

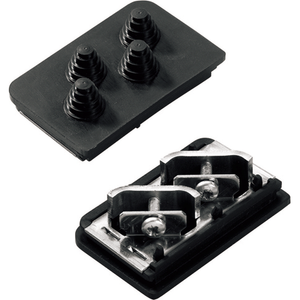

This IP54 plate is proposed as an option of Lexium ILA,ILE, ILS integrated servo drives. It consists in a plate with cable entries for for 4 cables diameter 3mm to 9mm. 2 plates are required per integrated drive. They provide the seal, the mechanical catch and connection of the shielding. It is sold in lots of 10.
