Schneider Electric VW3M3805R030 Canopen Cable, 3M, Sub D 9 Female Rj45,

(No reviews yet) Write a Review
SKU:
VW3M3805R030
UPC:
3.60648E+12
Condition:
New
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Bus Type:
CANopen
Mercury Free:
Yes
Range Of Product:
CANopen
Rohs Exemption Information:
Yes
Net Weight:
0.128 kg
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Range Compatibility:
Modicon M238 || Lexium 28 || Modicon M258 || Modicon LMC058
Cable Length:
3 m
Accessory / Separate Part Destination:
CANopen bus
Connector Type:
1 RJ45 || 1 female SUB-D 9 with integrated line terminator
Accessory / Separate Part Category:
connection accessory
Product Or Component Type:
CANopen preassembled cable
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
2 connectors
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Accessory / Separate Part Type:
connecting cable
  • Schneider Electric VW3M3805R030 Canopen Cable, 3M, Sub D 9 Female Rj45,
  • Schneider Electric VW3M3805R030 Canopen Cable, 3M, Sub D 9 Female Rj45,
$127.46

Description

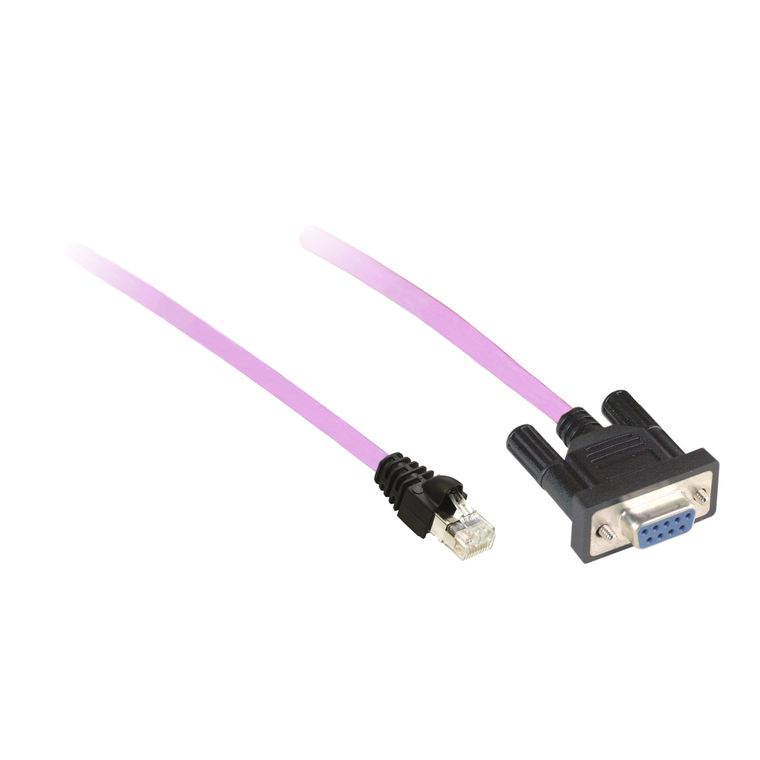

This product is part of the CANopen range, an offer of connection components. This CANopen preassembled cable is an accessory of programmable logic controllers. The length of this cable is 3m. It is furnished with RJ45 and 9-way D-Sub (DE-09) female connector with integrated line terminator. It weighs 0.128kg. It is suitable for used in general machine control, conveying and packaging applications. This connection sub-base is suitable for use with CANopen bus. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks.
