Schneider Electric VW3M5103R50 Bsh Motor Cable 4AA2 5M
Schneider Electric
$311.10
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

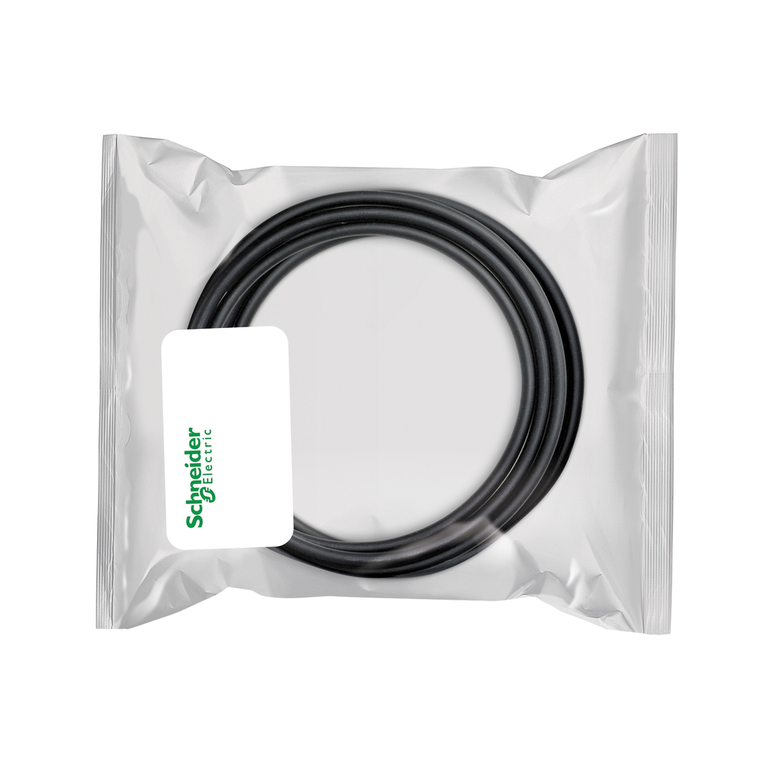

Schneider Electric VW3M5103R50 Bsh Motor Cable 4AA2 5M
This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 and motors. This power cable is an accessory of servo drives and motors. The length of this cable is 5m. It is furnished with M40 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 4mm² + 2 x 1mm². It is used between servomotor BSH and servo drive. It weighs 2.13kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with servo motor BMH, 1 motor stack (190mm). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
- Sustainable Offer Status:
- Green Premium product
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- power cable
- Pvc Free:
- Yes
- Net Weight:
- 2.13 kg
- Product Compatibility:
- servo motor BMH, 1 190 mm)E IEC 60204-1 || servo motor BMH, 3 205 mm)E IEC 60204-1 || servo motor BSH, 2 140 mm) || servo motor BSH, 3 140 mm) || servo motor BSH, 4 140 mm)
- Accessory / Separate Part Destination:
- between servo motor and servo drive
- Toxic Heavy Metal Free:
- Yes
- Cable Length:
- 5 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI1112048EN
- China Rohs Regulation:
- X
- Electrical Connection:
- free end servo drive side || connector - industrial M40 servo motor side
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Lexium 32 || Lexium 15 || Lexium 05
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Cable Composition:
- 4 x 4 mm² + 2 x 1 mm²
- Environmental Disclosure:
- ENVPEP111248EN
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Accessory / Separate Part Type:
- preassembled power cordset
- Accessory / Separate Part Category:
- connection accessory
- Datasheet:
- View
