Schneider Electric VW3M5501R50 Motor Cable Bmp 1,5Mma2 5M
Schneider Electric
$294.19
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3M5501R50 Motor Cable Bmp 1,5Mma2 5M

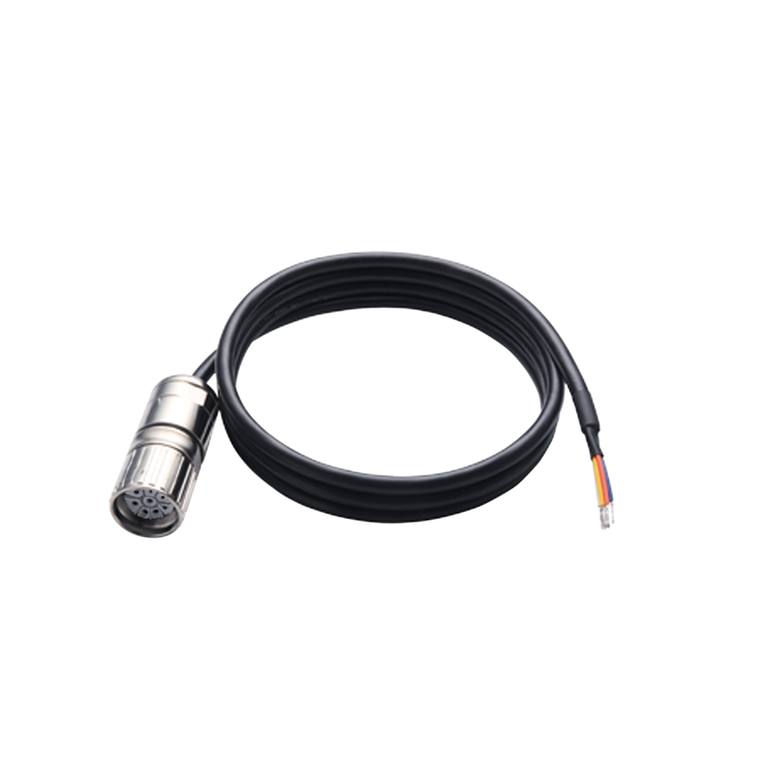

This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 5 meters shielded cable.
- Type Of Cable:
- shielded cable
- Reach Free Of Svhc:
- Yes
- Accessory / Separate Part Type:
- power cable
- Cable Length:
- 5 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- 1 connector M23 8 synchronous motor side || 1 free end variable speed drive side
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1112048EN
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Accessory / Separate Part Destination:
- between synchronous motor and variable speed drive
- Pvc Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Accessory / Separate Part Category:
- connection accessories
- Environmental Disclosure:
- ENVPEP111248EN
- Product Compatibility:
- synchronous motor BMP 140 mm, 1 C || synchronous motor BMP 100 mm, 2 R || synchronous motor BMP 100 mm, 2 F || synchronous motor BMP 140 mm, 1 F || synchronous motor BMP 140 mm, 2 C || synchronous motor BMP 70 mm, 1 R || synchronous motor BMP 70 mm,
- Range Of Product:
- Altivar
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cable Composition:
- 4 x 1.5 mm² + 2 x 1 mm² + 2 x 0.14 mm²
- Range Compatibility:
- Altivar Machine ATV320 || Altivar 32
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 1.27 kg
- Datasheet:
- View
-
-
-
