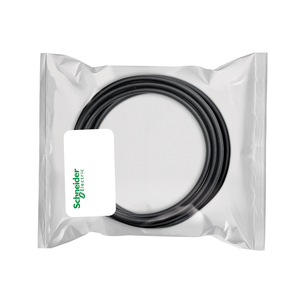

Schneider Electric VW3M8102R500 Encoder Cable M23 - Rj45, 50M
Schneider Electric
$541.35
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3M8102R500 Encoder Cable M23 - Rj45, 50M
This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 and motors. This control cable is an accessory of servo motors to connect the servo drive. The length of this cable is 50m. It is furnished with M23 and RJ45 connectors for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It weighs 3.1kg. This range is compatible with Lexium 32. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
- Environmental Disclosure:
- ENVPEP111239EN
- Mercury Free:
- Yes
- Accessory / Separate Part Destination:
- from servo motor to servo drive
- Range Of Product:
- Lexium
- Product Or Component Type:
- SinCos Hiperface encoder cable
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Accessory / Separate Part Category:
- connection accessory
- Range Compatibility:
- Lexium 32
- Pvc Free:
- Yes
- Circularity Profile:
- ENVEOLI1112039EN
- Electrical Connection:
- 1 connector M23 || 1 connector RJ45
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Cable Composition:
- 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Cable Length:
- 50 m
- Accessory / Separate Part Type:
- control cable
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 3.1 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Datasheet:
- View
