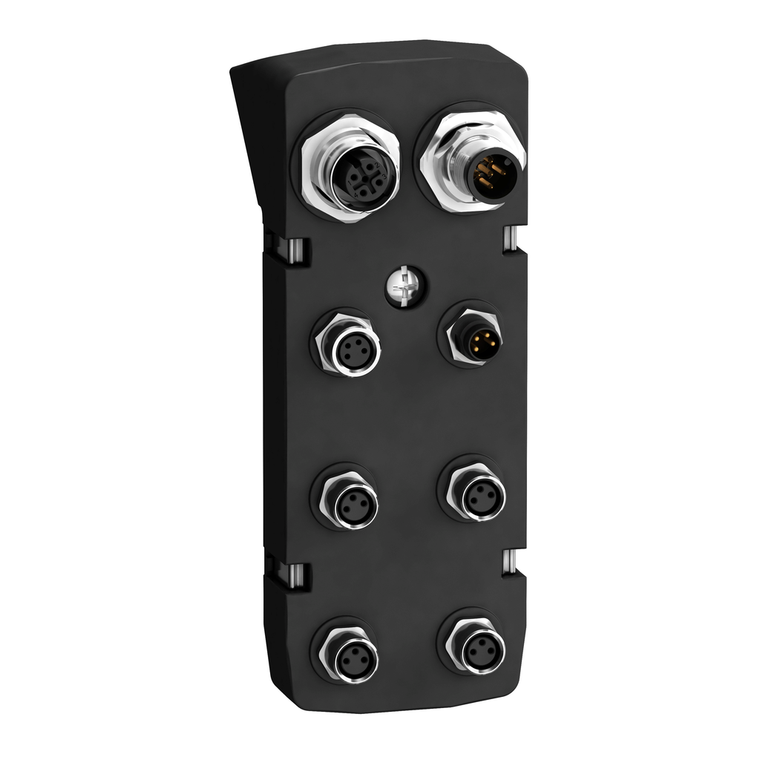

Schneider Electric VW3M9101 Lexium 32I Module Canopen M12
Schneider Electric
$255.98
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3M9101 Lexium 32I Module Canopen M12
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This product consists in a connection module for industrial connectors. It provides 4 discrete inputs. Communication interfaces are CANmotion and CANopen DS402 with STO (safe torque off) safety function. It is furnished with industrial connector for electrical connection. It weighs 0.22kg. This product is compatible with Lexium 32i integrated servo drives. This product is compatible with drive control unit LXM32i CANopen. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1312017EN
- China Rohs Regulation:
- X
- Safety Function:
- STO (safe torque off)
- Product Compatibility:
- drive control unit LXM32i CANopen
- Electrical Connection:
- industrial connector
- Circularity Profile:
- ENVEOLI1312017EN
- Net Weight:
- 0.22 kg
- Product Or Component Type:
- connector module
- Communication Interface:
- CANmotion || CANopen DS402
- Range Compatibility:
- Lexium 32i
- Discrete Input Logic:
- source
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Lexium 32i
- Mercury Free:
- Yes
- Accessory / Separate Part Category:
- connection accessories
- Rohs Exemption Information:
- Yes
- Input/Output Type:
- 4 discrete inputs
- Pvc Free:
- Yes
- Accessory / Separate Part Destination:
- motor BMI with drive control unit Lexium 32i
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Datasheet:
- View
