Schneider Electric VX5VPM003 Enclosure Door Fan Mce / Dc48V
Schneider Electric
$520.33
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

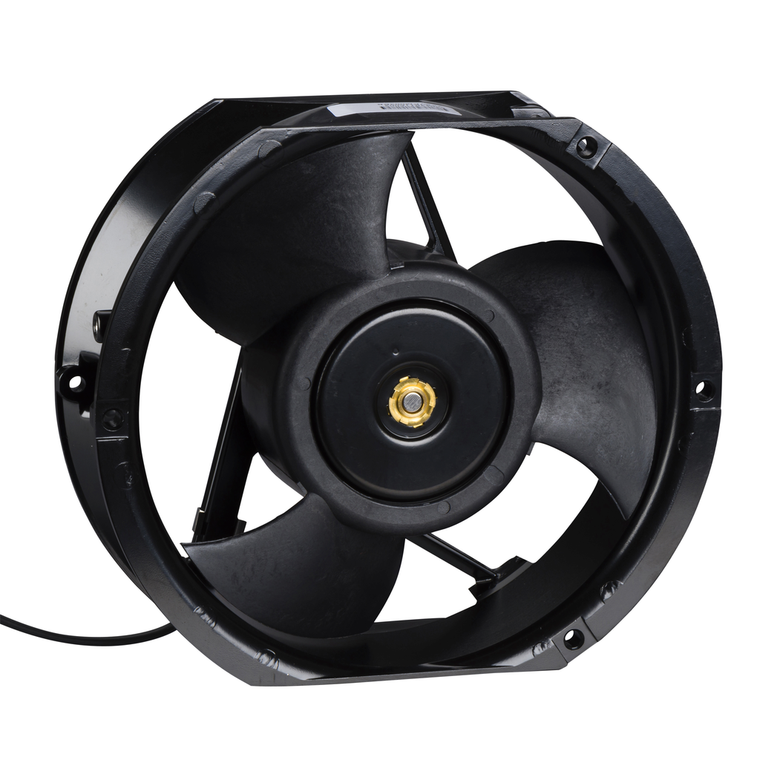

Schneider Electric VX5VPM003 Enclosure Door Fan Mce / Dc48V
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 110kw to 315kw and a rated voltage from 380V to 440V. This Fan increase the Drive life time. The quantity of Fan required depend on the drives ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 11cm (width) x 10cm (Length) x 10cm (Height) and weighs 1.2kg. This power fan is compatible with ATV630C11N4F to C31N4F, ATV650C11N4F to C31N4F, ATV930C11N4F to C31N4F, ATV950C11N4F to C31N4F. This kit includes 1 door fan, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
- Product Compatibility:
- variable speed drive ATV630 floor-standing 110-110 kW 380...440 V || variable speed drive ATV630 floor-standing 132-132 kW 380...440 V || variable speed drive ATV630 floor-standing 160-160 kW 380...440 V || variable speed drive ATV630 floor-standing
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Free Of Svhc:
- Yes
- Accessory / Separate Part Type:
- enclosure door fan
- Product Or Component Type:
- fan
- Accessory / Separate Part Category:
- cooling accessory
- Kit Composition:
- fan || mounting bracket || instruction sheet
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Altivar Process 600/900
- Datasheet:
- View
