Schneider Electric XACA271 Pendant Station Xaca 2 Push But To Ns
Schneider Electric
$249.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

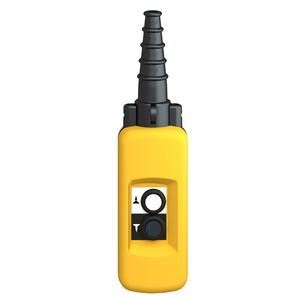

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Control Button Type:
- first push-button 1 NO raise, slow || second push-button 1 NO lower, slow
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Overvoltage Category:
- class II IEC 61140
- China Rohs Regulation:
- X
- Cable Entry:
- rubber sleeve with stepped entry 8-26 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Circularity Profile:
- N/A
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-32 || UL 508
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Enclosure Material:
- polypropylene
- Reach Free Of Svhc:
- Yes
- Operating Force:
- 10-10 N push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ui] Rated Insulation Voltage:
- 600 V 3)
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Sustainable Offer Status:
- Green Premium product
- Control Station Application:
- control of single speed hoist motor
- Control Station Composition:
- 2 push-buttons
- Protective Treatment:
- TH
- Device Short Name:
- XACA
- Product Certifications:
- CCC || GOST
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Product Or Component Type:
- pendant control station
- Net Weight:
- 0.475 kg
- Product Compatibility:
- ZB2BE101 for each direction
- Rohs Exemption Information:
- Yes
- Mechanical Interlocking:
- with mechanical interlocking
- Range Of Product:
- Harmony XAC
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Control Station Type:
- double insulated
- Terminals Description Iso N°1:
- (13-14)NO
- Contact Operation:
- slow-break
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Enclosure Type:
- complete ready for use
- Connections - Terminals:
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Electrical Circuit Type:
- control circuit
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Mechanical Durability:
- 1000000 cycles
- Terminal Identifier:
- (13-14)NO || (11-12)NC
- Ik Degree Of Protection:
- IK08 EN 50102
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Maximum Resistance Across Terminals:
- 25 MOhm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Station Colour:
- yellow
- Environmental Disclosure:
- ENVPEP070905EN
