Schneider Electric XACB06 Empty Pendant Control Station Xacb 6 Ver

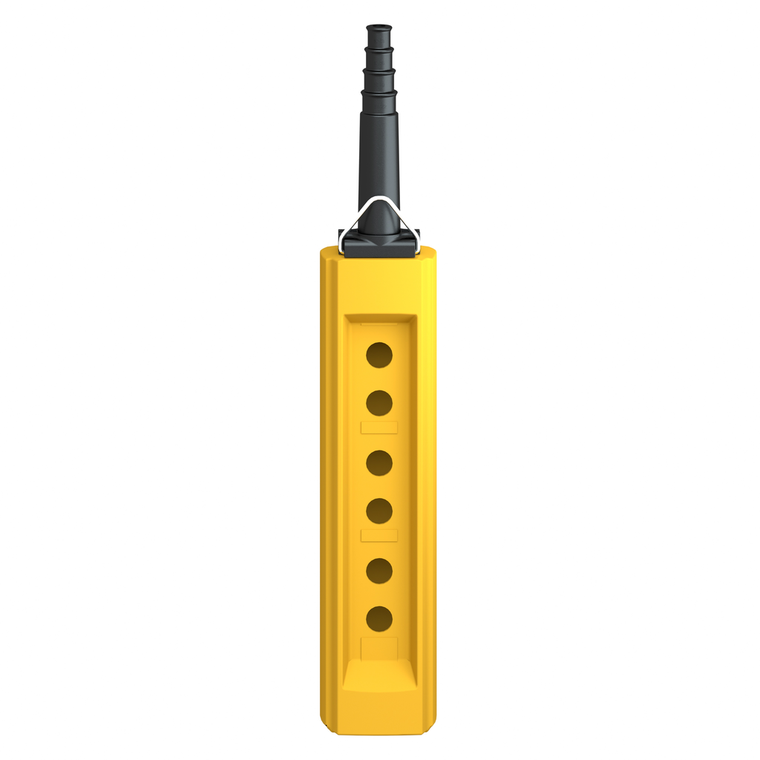

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 6 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
- Electrical Circuit Type:
- control circuit || power circuit
- Overvoltage Category:
- class II IEC 61140
- Cable Entry:
- rubber sleeve with stepped entry 10-22 mm
- Enclosure Material:
- glass reinforced polyester
- Ambient Air Temperature For Operation:
- -25-70 °C
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Guard Rail:
- without
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Net Weight:
- 1.16 kg
- Enclosure Type:
- empty enclosure
- Control Station Colour:
- yellow
- Control Station Type:
- double insulated
- Device Short Name:
- XACB
- Ik Degree Of Protection:
- IK08 IEC 62262
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- CSA type 4
- Mechanical Durability:
- 1000000 cycles
- Number Of Cut-Out:
- 6 cut-outs
- Ambient Air Temperature For Storage:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- China Rohs Regulation:
- X
- Product Or Component Type:
- pendant control station
- Range Of Product:
- Harmony XAC
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Vertical Operator Cut-Out Centre:
- 40 mm
