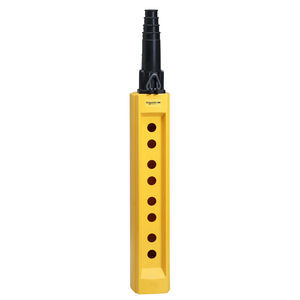

Schneider Electric XACB08 Empty Pendant Control Station Xacb 8 Ver

Schneider Electric XACB08 Empty Pendant Control Station Xacb 8 Ver

Schneider Electric
SKU:
XACB08
|
UPC:
3389110640540
Availability:
Contact us to confirm availability and lead times.
$546.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 8 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Additional Information
Electrical Circuit Type:
power circuit || control circuit
Mercury Free:
Yes
Overvoltage Category:
class II IEC 61140
Enclosure Type:
empty enclosure
Device Short Name:
XACB
Ambient Air Temperature For Operation:
-25-70 °C
Ambient Air Temperature For Storage:
-40-70 °C
Net Weight:
1.33 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony XAC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Cable Entry:
rubber sleeve with stepped entry 10-22 mm
Vertical Operator Cut-Out Centre:
40 mm
Warranty:
18 months
Control Station Colour:
yellow
Enclosure Material:
glass reinforced polyester
Product Certifications:
CSA type 4
Control Station Type:
double insulated
Rohs Exemption Information:
Yes
Standards:
IEC 60947-5-1 || CSA C22.2 No 14
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shock Resistance:
100 gn IEC 60068-2-27
Guard Rail:
without
Protective Treatment:
TH
Ip Degree Of Protection:
IP65 conforming to IEC 60529
Number Of Cut-Out:
8 cut-outs
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Ik Degree Of Protection:
IK08 IEC 62262
Product Or Component Type:
pendant control station
Mechanical Durability:
1000000 cycles
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
