Schneider Electric

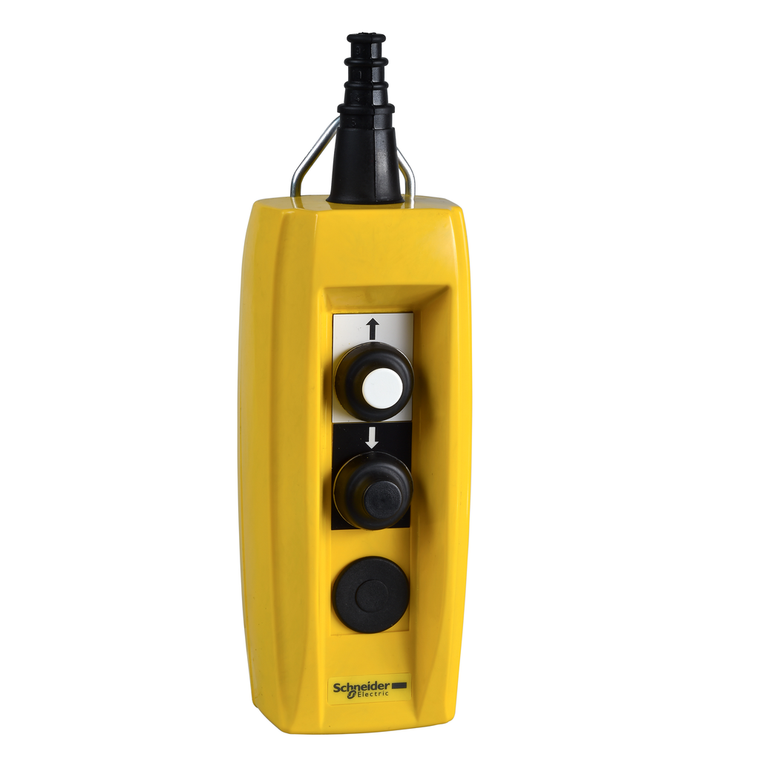

Schneider Electric XACB220 Pendant Station Xacb 2 Push But To Ns

SKU:

XACB220

UPC:

3.38911E+12

MPN:

Condition:

New

Control Station Colour:

yellow

Ambient Air Temperature For Storage:

-40-70 °C

[Ui] Rated Insulation Voltage:

500 V 3)IEC 60947-1 || 300 VCSA

Net Weight:

0.355 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Mercury Free:

Yes

Connections - Terminals:

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

Product Or Component Type:

pendant control station

Reach Regulation:

Free of Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Operating Force:

32-32 N push-button

Terminals Description Iso N°1:

(13-14)NO || (23-24)NO || (63-64)NO || (53-54)NO || (73-74)NO || (33-34)NO

[Ithe] Conventional Enclosed Thermal Current:

20 A

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Rated Operational Power In W:

3000 W 240 V || 3000 W 400 V

Control Station Composition:

2 push-buttons

Control Station Application:

control of single speed hoist motor

Reach Free Of Svhc:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contact Operation:

snap action

Toxic Heavy Metal Free:

Yes

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Rated Power In Hp:

3 hp 240 V

Cable Entry:

rubber sleeve with stepped entry 7-13 mm

Protective Treatment:

TH

Standards:

EN/IEC 60947-5-1 || EN/IEC 60204-32 || CSA C22.2 No 14

Electrical Circuit Type:

power circuit

Warranty:

18 months

Control Button Type:

first push-button 3-pole raise, slow || second push-button 3-pole lower, slow

Electrical Durability:

1000000 cycles AC-3, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 1000000 cycles AC-4, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-3, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-4, 3000 W 24

Product Certifications:

CSA type 4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Control Station Type:

double insulated

Product Compatibility:

XESD2201 for reversing operation

Ambient Air Temperature For Operation:

-25-70 °C

Enclosure Type:

complete ready for use

Short-Circuit Protection:

12 A fuse protection cartridge aM

Mechanical Durability:

1000000 cycles

Device Short Name:

XACB

Overvoltage Category:

class II IEC 61140

Terminal Identifier:

(11-12)NC || (13-14)NO

Mechanical Interlocking:

with mechanical interlocking

Shock Resistance:

100 gn IEC 60068-2-27

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XAC

Enclosure Material:

glass reinforced polyester
