Schneider Electric XALD164H29H7 Stop Cont.
Schneider Electric
$83.20
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

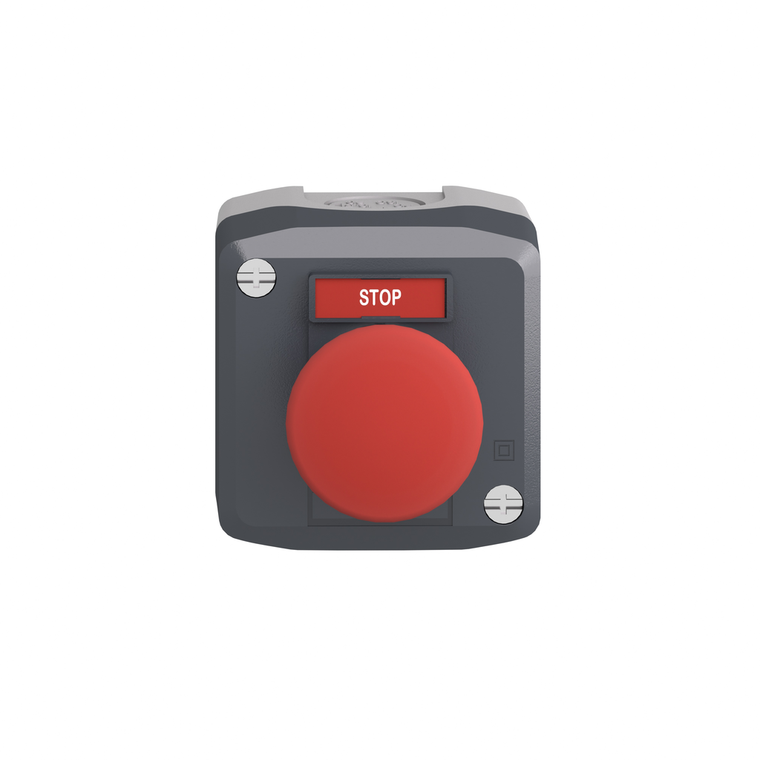

This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with mushroom head push button is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
- Device Short Name:
- XALD
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Overvoltage Category:
- class II IEC 60536
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Circularity Profile:
- ENVEOLI1806010EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Colour Of Base Of Enclosure:
- light grey RAL 7035)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XALD
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Contact Operation:
- slow-break
- Product Or Component Type:
- complete control station
- Colour Of Cover:
- dark grey RAL 7016)
- Control Station Composition:
- 1 mushroom head à 40 mm push-button, red 1 NC STOP
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operating Force:
- 3.5 N NC changing electrical state
- Marking Location:
- marking on legend holder
- Cable Entry:
- 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Net Weight:
- 0.182 kg
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Product Certifications:
- CSA || UL Listed
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Profile:
- 1 mushroom head push-button
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Mechanical Durability:
- 5000000 cycles
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Product Destination:
- for XB5 Ã 22 mm control and signalling units
- Shock Resistance:
- 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Ie] Rated Operational Current:
- 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Material:
- polycarbonate
- Operating Travel:
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Operators Description:
- red ''STOP'' 1 NC
- Control Station Application:
- stop function
- Standards:
- JIS C8201-5-1 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Ik Degree Of Protection:
- IK03 IEC 62262
- Contacts Material:
- silver alloy (Ag/Ni)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1806010EN
- Datasheet:
- View
