Schneider Electric

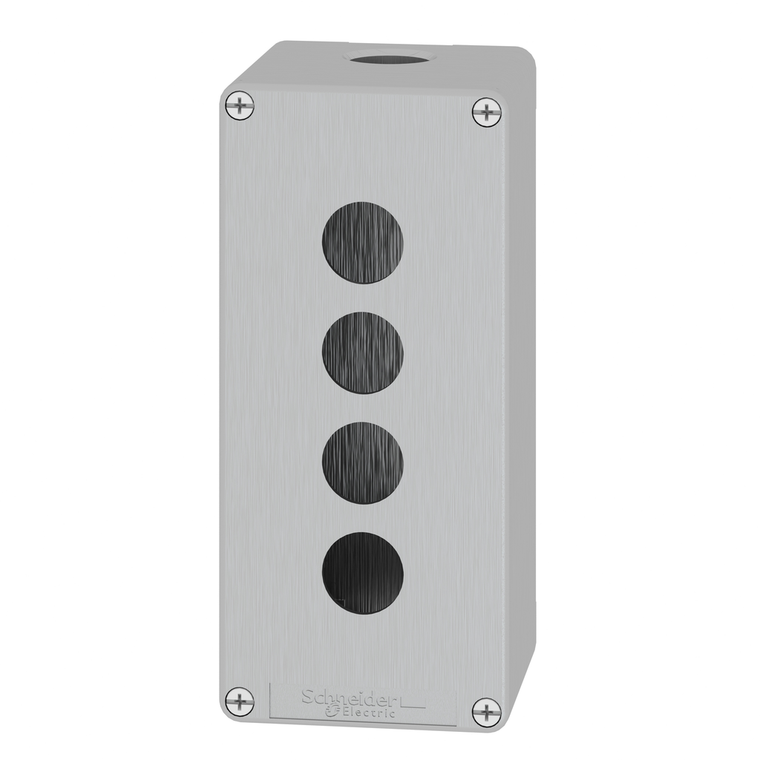

Schneider Electric XAPG39804 Metallic Enclosure

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XAPG39804 Metallic Enclosure

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XAPG39804

UPC:

3389118381735

MPN:

Condition:

New

Electrical Shock Protection Class:

class I IEC 60536 || class I NF C 20-030

Circularity Profile:

N/A

Material:

die cast zinc

Ip Degree Of Protection:

IP65 IEC 60529

Number Of Cut-Out:

4 cut-outs

Thread Type:

3/4 NPT

Product Or Component Type:

die-cast empty control station

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

China Rohs Regulation:

X

Compatibility Code:

XAPG

Number Of Horizontal Rows:

4

Cad Overall Depth:

77 mm

Protective Treatment:

TH

Cad Overall Height:

175 mm

Cad Overall Width:

80 mm

Ambient Air Temperature For Operation:

-25-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Colour Of Cover:

grey RAL 7032)

Ik Degree Of Protection:

IK07 EN/IEC 62262

Product Destination:

for Ø 22 mm control and signalling units

Device Short Name:

XAPG

Rohs Exemption Information:

Yes

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Range Of Product:

Harmony XAP

Sustainable Offer Status:

Green Premium product

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Control Station Type:

metal

Resistance To Chemical Agents:

special treatment can be obtained on request

Net Weight:

1.140 kg

Sale Per Indivisible Quantity:

1

Number Of Vertical Rows:

1

Environmental Disclosure:

ENVPEP2111017EN

Cut-Out Dimensions:

Ø 22 mm

Cable Entry:

cable gland || 1 x cable gland

Colour Of Base Of Enclosure:

grey RAL 7032)

Datasheet:

View
