Schneider Electric XARSK8L12W Wireless Remote Station Kit
Schneider Electric
$1,450.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XARSK8L12W Wireless Remote Station Kit

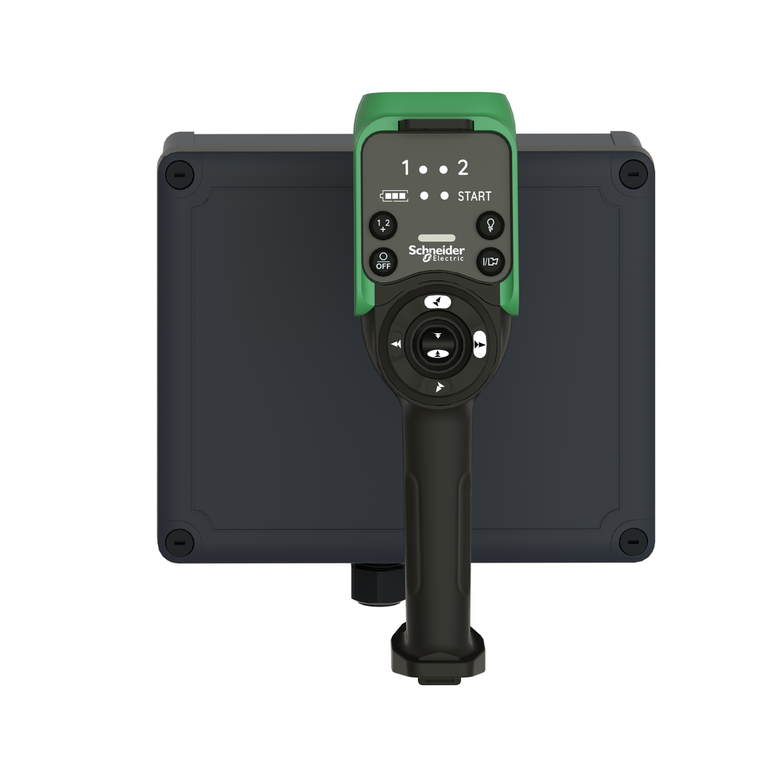

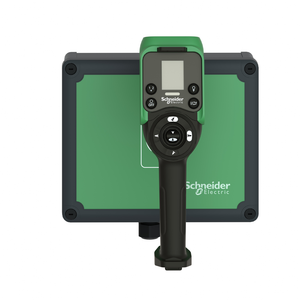

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system, accessories, USB/RJ45 cable and configuration software. It is designed for hoisting or material handling applications. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.
- Relative Humidity:
- 0-95 % -20-45 °C storage
- China Rohs Regulation:
- X
- Kit Composition:
- cable || remote control || shoulder belt || base station || configuration software
- Cable Entry:
- cable gland
- Operating Distance:
- 100 m in free air
- Transmission Frequency:
- 2.4 GHz
- Control Station Type:
- wireless
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Communication Network Type:
- wireless bluetooth low energy
- Number Of Channels:
- 50
- Electromagnetic Compatibility:
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnet
- Radio Agreement:
- SRRC || ICASA || FCC || ARIB || RSS || ANATEL
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- XARS
- Environmental Disclosure:
- ENVPEP1403029EN
- Standards:
- IEC 60204-1 safety || ISO 13849-1 safety || IEC 62061 safety || IEC 61508 safety || ISO 13850 safety || IEC 60204-32 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio ||
- Circularity Profile:
- ENVEOLI1403029EN
- Range Of Product:
- Harmony eXLhoist
- Product Specific Application:
- material handling || hoisting applications
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- CE || UL || CSA || C-tick || JIS || KC || EAC
- Control Station Application:
- stop function SIL 2 maximum can reach PL d/category 3)IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061 || emergency stop function SIL 3 maximum
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- control station
- Mercury Free:
- Yes
- Brochure:
- View
- Datasheet:
- View
