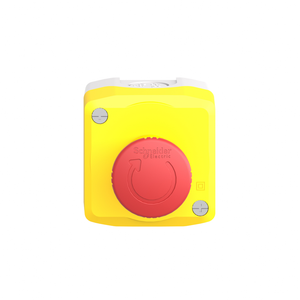

Schneider Electric XB4AB2 22Mm Mushroom W/ Contact

Schneider Electric XB4AB2 22Mm Mushroom W/ Contact

Schneider Electric
SKU:
XB4AB2
|
UPC:
785901553762
$82.60
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. Operator is a turn to release push button with a 40mm red mushroom button. The operator has one normally closed contact. Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. The mushroom button is NEMA 4, 4X and 13 rated. Turn to release mushroom button is 1.85 inches tall, 1.57 inches wide and 3.23 inches deep. The push button assembly weighs 0.26 lbs. This point of purchase product is packaged in a blister pack. Push button is UL Listed and CSA certified "It is ideal for machine builder industry applications such as automotive, textile and wood. It is also suitable for use in public works, building and airport." "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508 and JIS C8201-1 standards." "It is installed into a 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Additional Information
Mechanical Durability:
300000 cycles
Reset:
turn to release
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Height:
47 mm
Terminals Description Iso N°1:
(21-22)NC
Protective Treatment:
TH
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP66 IEC 60529
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Circularity Profile:
ENVEOLI1808008EN
Shape Of Signaling Unit Head:
round
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Width:
40 mm
Ik Degree Of Protection:
IK03 IEC 50102
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Shock Protection Class:
class I IEC 60536
Range Of Product:
Harmony XB4
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Depth:
104 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Mounting Diameter:
22 mm
Contacts Material:
silver alloy (Ag/Ni)
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device Presentation:
complete product
Contacts Usage:
standard contacts
Contact Operation:
slow-break
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Ambient Air Temperature For Storage:
-40-70 °C
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Sale Per Indivisible Quantity:
1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Type Of Operator:
mechanical latching
Environmental Disclosure:
ENVPEP1808008EN
Standards:
IEC 60947-5-4 || IEC 60947-1 || IEC 60364-5-53 || IEC 60947-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1
China Rohs Regulation:
X
Fixing Collar Material:
zamak
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
emergency switching off push-button
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Net Weight:
0.133 kg
Operator Profile:
red mushroom Ø 40 mm, unmarked
Product Certifications:
UL Listed || BV || CSA || DNV || GL || LROS (Lloyds register of shipping)
Bezel Material:
chromium plated metal
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Positive Opening:
with IEC 60947-5-1 appendix K
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Device Short Name:
XB4
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Operation:
-25-70 °C
