Schneider Electric XB4BA4322 Pushbutton

Schneider Electric XB4BA4322 Pushbutton

Schneider Electric
SKU:
XB4BA4322
|
UPC:
3389110886979
$44.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

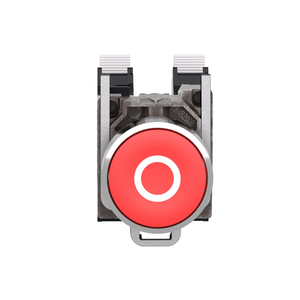

This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Ambient Air Temperature For Operation:
-40-70 °C
Bezel Material:
chromium plated metal
Fixing Collar Material:
zamak
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Diameter:
22 mm
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Depth:
52 mm
Environmental Disclosure:
ENVPEP1808008EN
Operator Profile:
red flush, O white)
China Rohs Regulation:
X
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type:
standard
Contacts Material:
silver alloy (Ag/Ni)
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Terminals Description Iso N°1:
(21-22)NC
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Standards:
IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-1
Device Presentation:
complete product
Ambient Air Temperature For Storage:
-40-70 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sale Per Indivisible Quantity:
1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Positive Opening:
with IEC 60947-5-1 appendix K
Contact Operation:
slow-break
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
30 mm
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Overvoltage Category:
class I IEC 60536
Mechanical Durability:
10000000 cycles
Protective Treatment:
TH
Ik Degree Of Protection:
IK06 IEC 50102
Mercury Free:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Product Certifications:
CSA || BV || UL Listed || LROS (Lloyds register of shipping) || DNV || GL
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Operating Force:
3.5 N NC changing electrical state
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Contacts Usage:
standard contacts
Type Of Operator:
spring return
Sustainable Offer Status:
Green Premium product
Contacts Type And Composition:
1 NC
Circularity Profile:
ENVEOLI1808008EN
Device Short Name:
XB4
Range Of Product:
Harmony XB4
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Product Or Component Type:
push-button
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Height:
47 mm
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Net Weight:
0.08 kg
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Shape Of Signaling Unit Head:
round
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
