Schneider Electric XB4BA731327 Complete Metal Triple Headed Pushbuttons

Schneider Electric XB4BA731327 Complete Metal Triple Headed Pushbuttons

Schneider Electric
SKU:
XB4BA731327
|
UPC:
3389119043588
$180.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

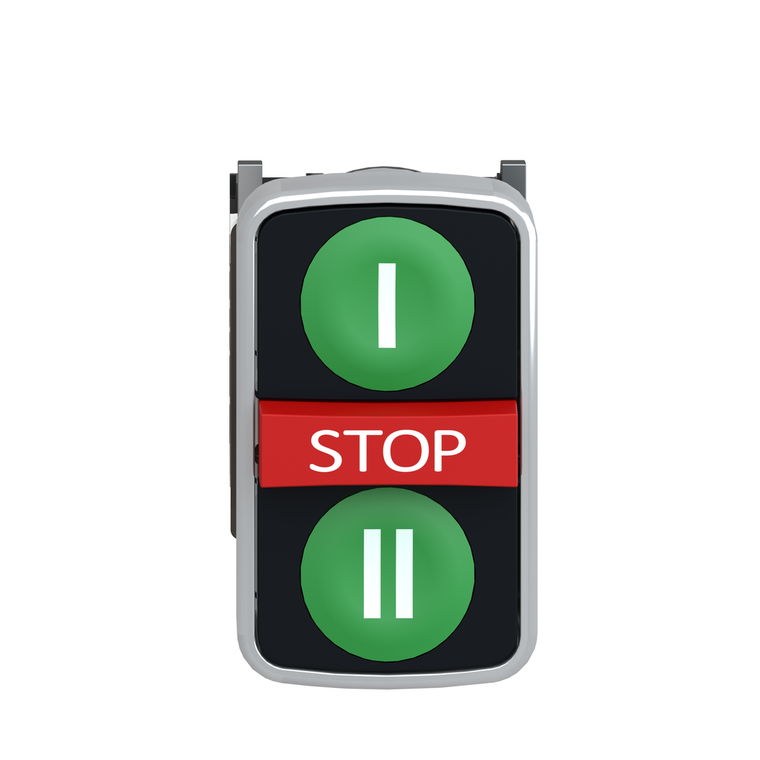

This Harmony XB4 triple-headed modular push button has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with "I", "STOP" and "II" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Additional Information
Sustainable Offer Status:
Green Premium product
Standards:
CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-1
Shape Of Signaling Unit Head:
rectangular
Electrical Shock Protection Class:
class I IEC 61140
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Opening:
with IEC 60947-5-1 appendix K
Range Of Product:
Harmony XB4
Colour Of Marking:
black marking when white caps || white marking when green, red or black caps
Protective Treatment:
TH
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contact Operation:
slow-break
China Rohs Regulation:
X
Head Type:
standard
Product Or Component Type:
triple-headed push-button
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK06 IEC 50102
Product Certifications:
BV || UL Listed || CSA || GL || LROS (Lloyds register of shipping) || DNV
Operator Profile:
red projecting, STOP white) || green flush, I white) || green flush, II white)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Device Presentation:
complete product
Mechanical Durability:
1000000 cycles
Net Weight:
0.128 kg
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Bezel Material:
chromium plated metal
Type Of Operator:
spring return
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contacts Material:
silver alloy (Ag/Ni)
Operator Profile:
2 flush - 1 central projecting STOP push-buttons
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without c
Warranty:
18 months
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Ip Degree Of Protection:
IP69K IEC 60529 || IP69 IEC 60529
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Circularity Profile:
ENVEOLI1808008EN
Operators Description:
green ''I'' - green ''II'' - red ''STOP''
Ambient Air Temperature For Storage:
-40-70 °C
Mercury Free:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Fixing Collar Material:
zamak
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
XB4
Mounting Diameter:
22 mm
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Type And Composition:
1 NO + 1 NC + 1 NO
Contacts Usage:
standard contacts
Environmental Disclosure:
ENVPEP1808008EN
Brochure:
View
Datasheet:
View
