Schneider Electric XB4BA821 Reset Xb4B Pushbutton

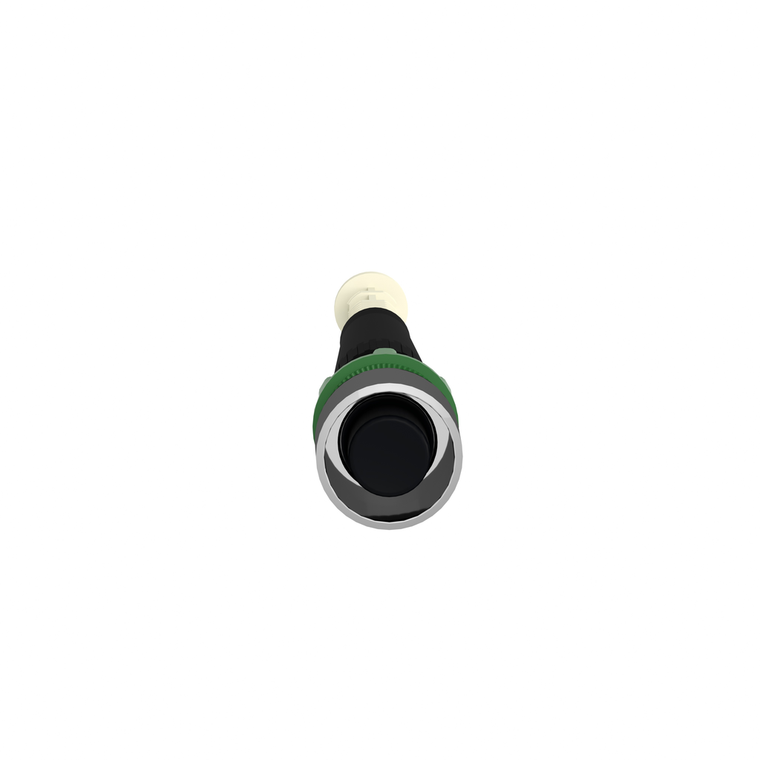

This Harmony XB4 black, complete push button for manual overload reset is part of the range diameter 22mm, Harmony XB4 metal. It has a circular head shape with a flush unmarked push. It features 10mm operating travel and 6mm to 16mm activating distance, and screw connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 22 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Shock Protection Class:
- class I IEC 60536
- Circularity Profile:
- ENVEOLI1808008EN
- Activating Distance:
- 6-16 mm
- Protective Treatment:
- TH
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
- Mechanical Durability:
- 5000000 cycles
- Fixing Collar Material:
- zamak
- Ambient Air Temperature For Operation:
- -40-70 °C
- Net Weight:
- 0.037 kg
- Device Short Name:
- XB4
- Ip Degree Of Protection:
- IP66 IEC 60529
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operating Travel:
- 10 mm
- Product Or Component Type:
- manual overload reset push-button
- Warranty:
- 18 months
- Bezel Material:
- chromium plated metal
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Head Type:
- standard
- Product Certifications:
- CSA || DNV || GL || BV || LROS (Lloyds register of shipping) || UL Listed
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Operator Profile:
- black flush, unmarked
- Environmental Disclosure:
- ENVPEP1808008EN
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mercury Free:
- Yes
