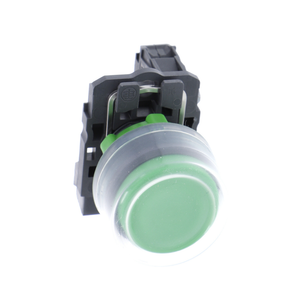

Schneider Electric XB4BP61 Pushbutton

Schneider Electric XB4BP61 Pushbutton

Schneider Electric
SKU:
XB4BP61
|
UPC:
3389110118940
$53.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4 modular blue push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Additional Information
Net Weight:
0.082 kg
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Ik Degree Of Protection:
IK06 IEC 50102
Operating Force:
3.8 N NO changing electrical state
Overvoltage Category:
class I IEC 60536
Depth:
61 mm
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
XB4
Product Or Component Type:
push-button
Ambient Air Temperature For Operation:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Shape Of Signaling Unit Head:
round
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
Range Of Product:
Harmony XB4
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Environmental Disclosure:
ENVPEP1808008EN
Product Compatibility:
not compatible with legend holder
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Additional Information:
clear boot
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Contacts Type And Composition:
1 NO
Height:
47 mm
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Type Of Operator:
spring return
China Rohs Regulation:
X
Mounting Diameter:
22 mm
Positive Opening:
without
Sale Per Indivisible Quantity:
1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Rohs Exemption Information:
Yes
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Toxic Heavy Metal Free:
Yes
Contacts Usage:
standard contacts
Width:
30 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Terminals Description Iso N°1:
(13-14)NO
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Circularity Profile:
ENVEOLI1808008EN
Contact Operation:
slow-break
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mechanical Durability:
10000000 cycles
Fixing Collar Material:
zamak
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Operator Profile:
blue projecting, unmarked
Product Certifications:
DNV || UL Listed || CSA || GL || LROS (Lloyds register of shipping) || BV
Contacts Material:
silver alloy (Ag/Ni)
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Head Type:
standard
Protective Treatment:
TH
Ambient Air Temperature For Storage:
-40-70 °C
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Reach Free Of Svhc:
Yes
Device Presentation:
complete product
Bezel Material:
chromium plated metal
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Warranty:
18 months
