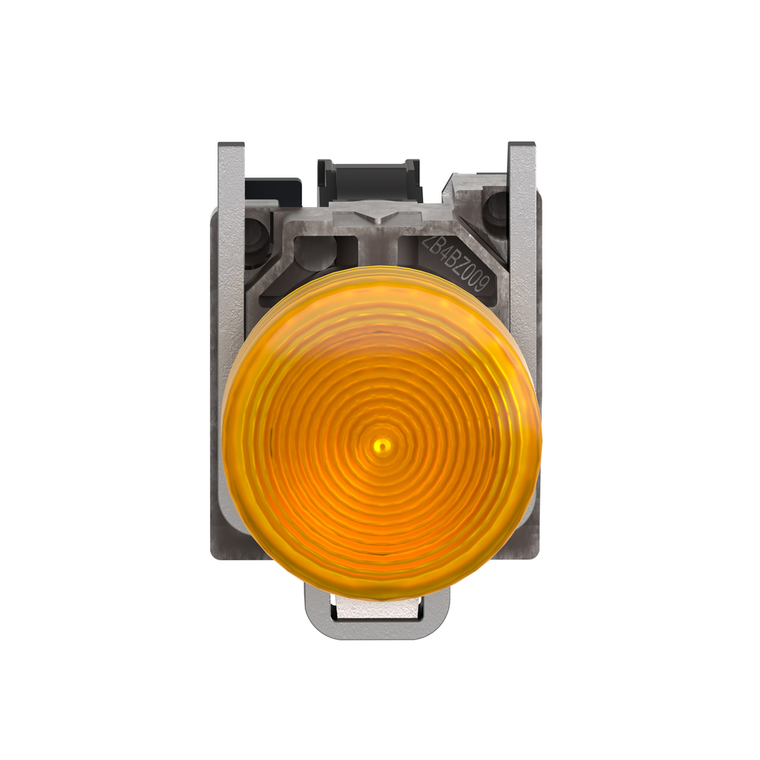

Schneider Electric XB4BV65 Direct Supply Pilot Light

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BV65 Direct Supply Pilot Light

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BV65

UPC:

3389110887204

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Warranty:

18 months

Light Source:

bulb not included

Electrical Shock Protection Class:

class I IEC 60536

Signalling Type:

steady

Mercury Free:

Yes

Terminals Description Iso N°1:

(X1-X2)PL

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Ik Degree Of Protection:

IK06 IEC 50102

Circularity Profile:

ENVEOLI2308026EN

Net Weight:

0.075 kg

Height:

47 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bulb Base:

BA 9s

Product Or Component Type:

pilot light

Mounting Diameter:

22 mm

Light Block Supply:

direct <2.4 W

Cap/Operator Or Lens Colour:

orange

Environmental Disclosure:

ENVPEP2308026EN

Range Of Product:

Harmony XB4

Rohs Exemption Information:

Yes

Product Certifications:

UL Listed || CSA

Bezel Material:

chromium plated metal

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Device Short Name:

XB4

Protective Treatment:

TH

Ambient Air Temperature For Operation:

-40-55 °C

Device Presentation:

complete product

Width:

30 mm

Shape Of Signaling Unit Head:

round

Sustainable Offer Status:

Green Premium product

Depth:

55 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Standards:

IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fixing Collar Material:

zamak

Head Type:

standard

Sale Per Indivisible Quantity:

1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Operator Additional Information:

with plain lens

[Us] Rated Supply Voltage:

<= 250 V
