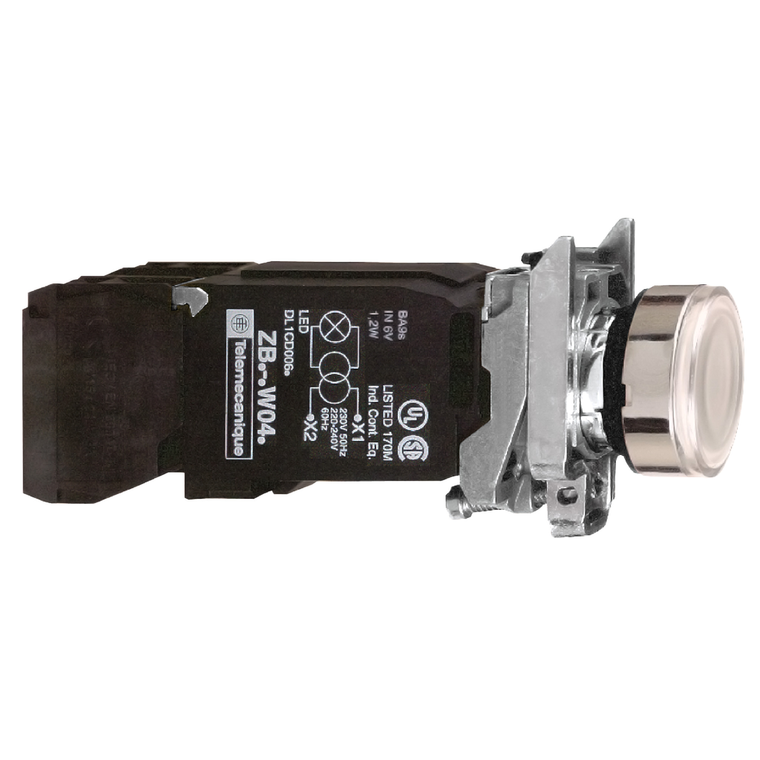

Schneider Electric XB4BW3135 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW3135

UPC:

3.38911E+12

MPN:

Condition:

New

Contacts Type And Composition:

1 NO + 1 NC

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Product Or Component Type:

illuminated push-button

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

GL || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || BV

Net Weight:

0.169 kg

Bulb Base:

BA 9s

Ambient Air Temperature For Operation:

-40-55 °C

Light Block Supply:

via integral transformer 1.2 VA 6 V

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Environmental Disclosure:

ENVPEP1808008EN

Ambient Air Temperature For Storage:

-40-70 °C

Circularity Profile:

ENVEOLI1808008EN

Ik Degree Of Protection:

IK06 IEC 50102

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Range Of Product:

Harmony XB4

Type Of Operator:

spring return

Light Source:

incandescent

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Presentation:

complete product

Mercury Free:

Yes

Signalling Type:

steady

Warranty:

18 months

China Rohs Regulation:

X

Protective Treatment:

TH

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mounting Diameter:

22 mm

Shape Of Signaling Unit Head:

round

Sale Per Indivisible Quantity:

1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Head Type:

standard

Operator Additional Information:

with plain lens

Rohs Exemption Information:

Yes

Contacts Material:

silver alloy (Ag/Ni)

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Height:

47 mm

Sustainable Offer Status:

Green Premium product

Device Short Name:

XB4

Bezel Material:

chromium plated metal

Operator Profile:

white flush

Mechanical Durability:

10000000 cycles

Contact Operation:

slow-break

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Electrical Shock Protection Class:

class I IEC 60536

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Depth:

101 mm

Width:

30 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Fixing Collar Material:

zamak

Positive Opening:

with IEC 60947-5-1 appendix K

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Force:

3.5 N NC changing electrical state || 3.8 N

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Standards:

UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contacts Usage:

standard contacts
