Schneider Electric XB4BW33B5 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

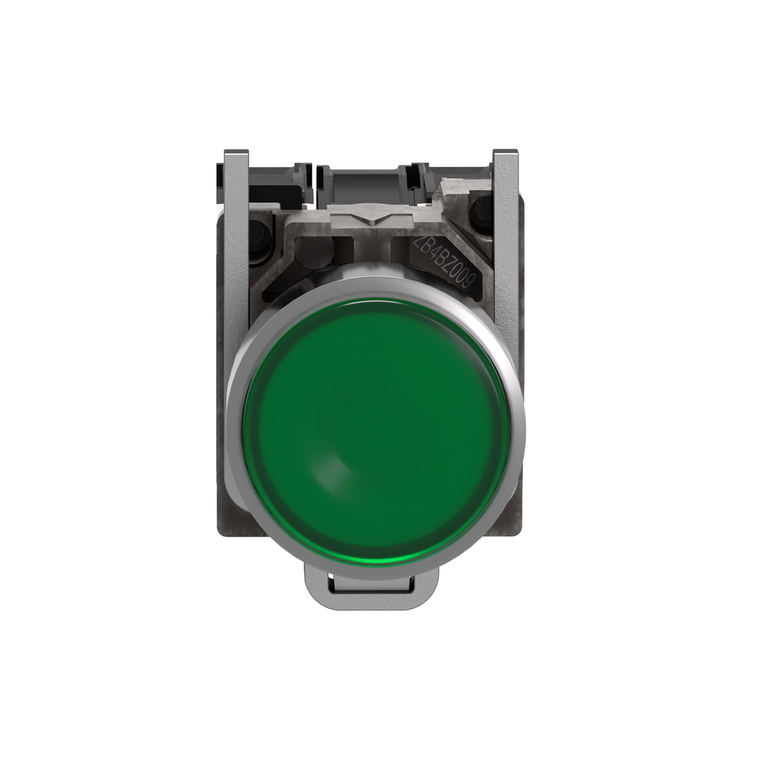

Schneider Electric XB4BW33B5 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW33B5

UPC:

3389110892048

MPN:

Condition:

New

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Product Or Component Type:

illuminated push-button

Positive Opening:

with IEC 60947-5-1 appendix K

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Mercury Free:

Yes

Protective Treatment:

TH

Contact Operation:

slow-break

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Electrical Shock Protection Class:

class I IEC 60536

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Bulb Base:

integral LED

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Height:

47 mm

Type Of Operator:

spring return

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Light Source:

universal LED

Standards:

IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || UL 508 || JIS C8201-1

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Contacts Type And Composition:

1 NO + 1 NC

Current Consumption:

18 mA

Contacts Usage:

standard contacts

Mechanical Durability:

10000000 cycles

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Warranty:

18 months

Service Life:

100000 h at rated voltage and 25 °C

Ambient Air Temperature For Operation:

-40-70 °C

Product Certifications:

LROS (Lloyds register of shipping) || DNV || BV || GL || UL Listed || CSA

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Fixing Collar Material:

zamak

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Head Type:

standard

Operator Profile:

green flush

Surge Withstand:

1 kV IEC 61000-4-5

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Circularity Profile:

ENVEOLI1808008EN

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Contacts Material:

silver alloy (Ag/Ni)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

30 mm

Range Of Product:

Harmony XB4

Mounting Diameter:

22 mm

Signalling Type:

steady

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Environmental Disclosure:

ENVPEP1808008EN

Electromagnetic Emission:

class B IEC 55011

Operator Additional Information:

with plain lens

Device Presentation:

complete product

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Ik Degree Of Protection:

IK06 IEC 50102

Net Weight:

0.097 kg

Shape Of Signaling Unit Head:

round

Rohs Exemption Information:

Yes

Bezel Material:

chromium plated metal

China Rohs Regulation:

X

Device Short Name:

XB4

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Depth:

57 mm

Ambient Air Temperature For Storage:

-40-70 °C

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
