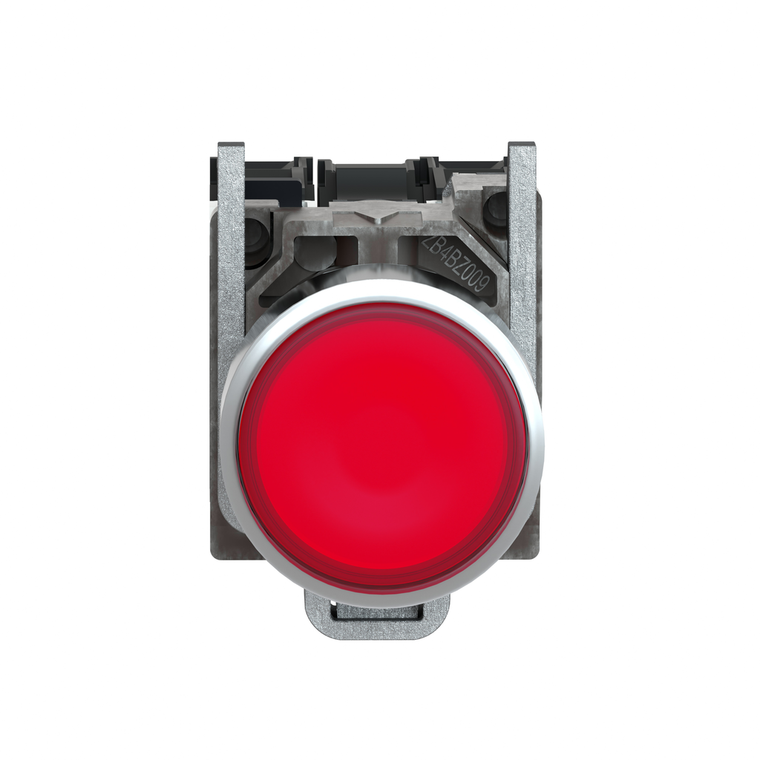

Schneider Electric XB4BW34G5 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB4BW34G5 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW34G5

UPC:

3389110892093

MPN:

Condition:

New

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Warranty:

18 months

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Mechanical Durability:

10000000 cycles

Ik Degree Of Protection:

IK06 IEC 50102

Range Of Product:

Harmony XB4

Standards:

JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-1

Product Certifications:

LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL || DNV

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Signalling Type:

steady

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Shock Protection Class:

class I IEC 60536

Device Short Name:

XB4

Operator Additional Information:

with plain lens

Contacts Material:

silver alloy (Ag/Ni)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

47 mm

Protective Treatment:

TH

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Usage:

standard contacts

Product Or Component Type:

illuminated push-button

Depth:

57 mm

Ambient Air Temperature For Storage:

-40-70 °C

Bezel Material:

chromium plated metal

Net Weight:

0.097 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shape Of Signaling Unit Head:

round

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Positive Opening:

with IEC 60947-5-1 appendix K

Light Source:

universal LED

Sale Per Indivisible Quantity:

1

Surge Withstand:

1 kV IEC 61000-4-5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Contacts Type And Composition:

1 NO + 1 NC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Head Type:

standard

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Circularity Profile:

ENVEOLI1808008EN

Operator Profile:

red flush

Ambient Air Temperature For Operation:

-40-70 °C

Contact Operation:

slow-break

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Mounting Diameter:

22 mm

Electromagnetic Emission:

class B IEC 55011

Supply Voltage Limits:

100-132 V AC

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Device Presentation:

complete product

Type Of Operator:

spring return

Service Life:

100000 h at rated voltage and 25 °C

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Mercury Free:

Yes

Fixing Collar Material:

zamak

Bulb Base:

integral LED

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Width:

30 mm

Current Consumption:

14 mA

Environmental Disclosure:

ENVPEP1808008EN

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Sustainable Offer Status:

Green Premium product
