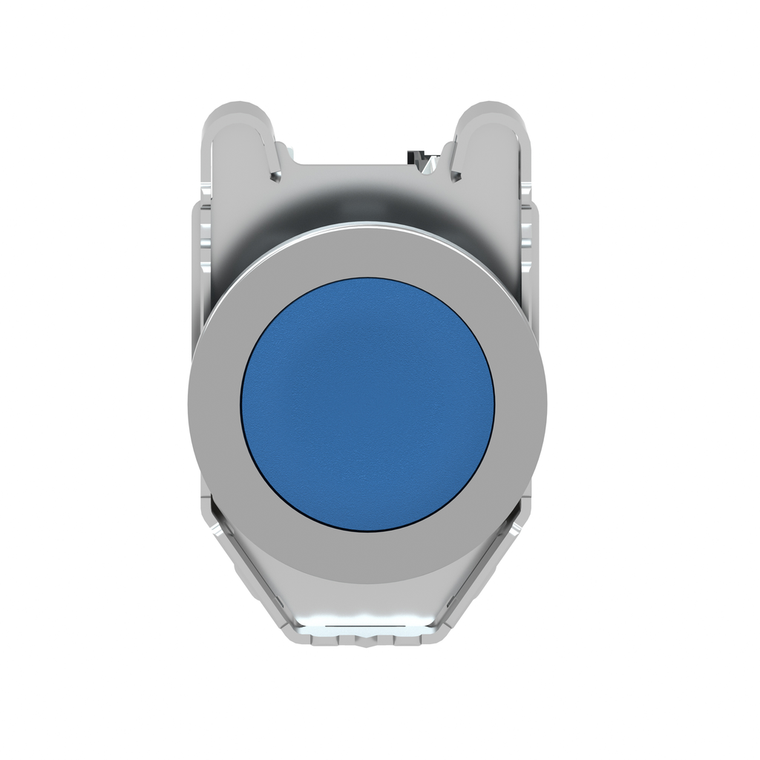

Schneider Electric XB4FA61 Flush Pb Bl 1No
Schneider Electric
$38.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB4FA61 Flush Pb Bl 1No
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Fixing Collar Material:
- zamak
- Rohs Exemption Information:
- Yes
- Head Type:
- built-in-flush
- Device Mounting:
- built-in
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Mechanical Durability:
- 10000000 cycles
- Depth:
- 55 mm
- Shape Of Signaling Unit Head:
- round
- Contacts Type And Composition:
- 1 NO
- Ambient Air Temperature For Storage:
- -40-70 °C
- Terminals Description Iso N°1:
- (13-14)NO
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Overvoltage Category:
- class I IEC 60536
- Type Of Operator:
- spring return
- Mounting Diameter:
- 30.5 mm
- Width:
- 36.6 mm
- Net Weight:
- 0.116 kg
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Contacts Usage:
- standard contacts
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Operating Force:
- 3.8 N NO changing electrical state
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Operator Profile:
- blue flush, unmarked
- Environmental Disclosure:
- ENVPEP1808008EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Fixing Mode:
- by screws
- Height:
- 47 mm
- Device Short Name:
- XB4F
- Product Or Component Type:
- push-button
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Product Certifications:
- UL Listed || CSA
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Presentation:
- complete product
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
- Positive Opening:
- without
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Circularity Profile:
- ENVEOLI1808008EN
- Contact Operation:
- slow-break
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Contacts Material:
- silver alloy (Ag/Ni)
- China Rohs Regulation:
- X
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33
