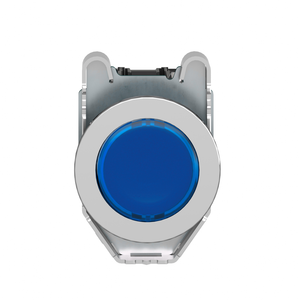

Schneider Electric XB4FW36M5 Flush Caps Ill Pb Bl Led 230V 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4FW36M5 Flush Caps Ill Pb Bl Led 230V 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4FW36M5

UPC:

3606489580773

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

Device Short Name:

XB4F

Mechanical Durability:

10000000 cycles

Depth:

55 mm

Contact Operation:

slow-break

Supply Voltage Limits:

195-264 V AC

Sale Per Indivisible Quantity:

1

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Net Weight:

0.132 kg

Service Life:

100000 h at rated voltage and 25 °C

Electromagnetic Emission:

class B IEC 55011

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Resistance To Fast Transients:

2 kV IEC 61000-4-4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bezel Material:

chromium plated metal

Device Presentation:

complete product

Fixing Collar Material:

zamak

Mercury Free:

Yes

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Fixing Mode:

by screws 0.8 N.m

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Warranty:

18 months

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Mounting Diameter:

30.5 mm

Operator Additional Information:

with plain lens

Bulb Base:

integral LED

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

Head Type:

built-in-flush

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Circularity Profile:

ENVEOLI1808008EN

Width:

36.6 mm

Ik Degree Of Protection:

IK06 IEC 50102

Signalling Type:

steady

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Positive Opening:

with IEC 60947-5-1 appendix K

Light Source:

universal LED

Current Consumption:

14 mA

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ambient Air Temperature For Operation:

-40-70 °C

Contacts Usage:

standard contacts

Product Certifications:

UL Listed || CSA || CCC || EAC

Operator Profile:

blue flush

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Contacts Material:

silver alloy (Ag/Ni)

Contacts Type And Composition:

1 NO + 1 NC

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP1808008EN

Height:

47 mm

Protective Treatment:

TH

Type Of Operator:

spring return

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Device Mounting:

built-in

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Product Or Component Type:

illuminated push-button

Range Of Product:

Harmony XB4

China Rohs Regulation:

X

Shape Of Signaling Unit Head:

round

Electrical Shock Protection Class:

class I IEC 60536

Surge Withstand:

1 kV IEC 61000-4-5
