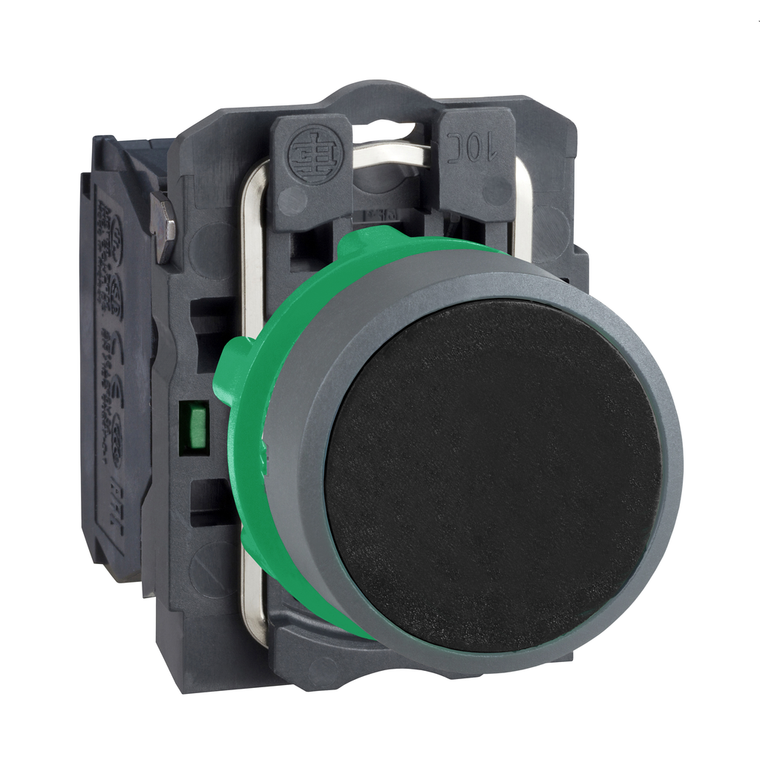

Schneider Electric XB5AA21C0 Pushbutton
Schneider Electric
$16.85
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This push-button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Device Presentation:
- complete product
- Type Of Operator:
- spring return
- Customizable:
- no
- Contacts Usage:
- standard contacts
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Contacts Material:
- silver alloy (Ag/Ni)
- Shape Of Signaling Unit Head:
- round
- Contact Operation:
- slow-break
- Terminals Description Iso N°1:
- (13-14)NO
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Toxic Heavy Metal Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operating Force:
- 3.8 N NO changing electrical state
- Range Of Product:
- Harmony XB5
- Head Type:
- standard
- Height:
- 42 mm
- Depth:
- 52 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 10000000 cycles
- Width:
- 30 mm
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Operator Profile:
- black flush, unmarked
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mounting Diameter:
- 22 mm
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Overvoltage Category:
- class II IEC 60536
- Gcr Bridge:
- XB5AACUST02
- Product Or Component Type:
- push-button
- Net Weight:
- 0.037 kg
- Sale Per Indivisible Quantity:
- 1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Product Certifications:
- UL Listed || CSA || RINA || BV || DNV || LROS (Lloyds register of shipping) || GL
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Customizable:
- 1
- Bezel Material:
- plastic colour plated grey
- Positive Opening:
- without
- Reach Free Of Svhc:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Contacts Type And Composition:
- 1 NO
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Fixing Collar Material:
- plastic
- Compatibility Code:
- XB5
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Device Short Name:
- XB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
