Schneider Electric XB5AA61 Pushbutton

Schneider Electric XB5AA61 Pushbutton

Schneider Electric
SKU:
XB5AA61
|
UPC:
3389110134407
$38.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

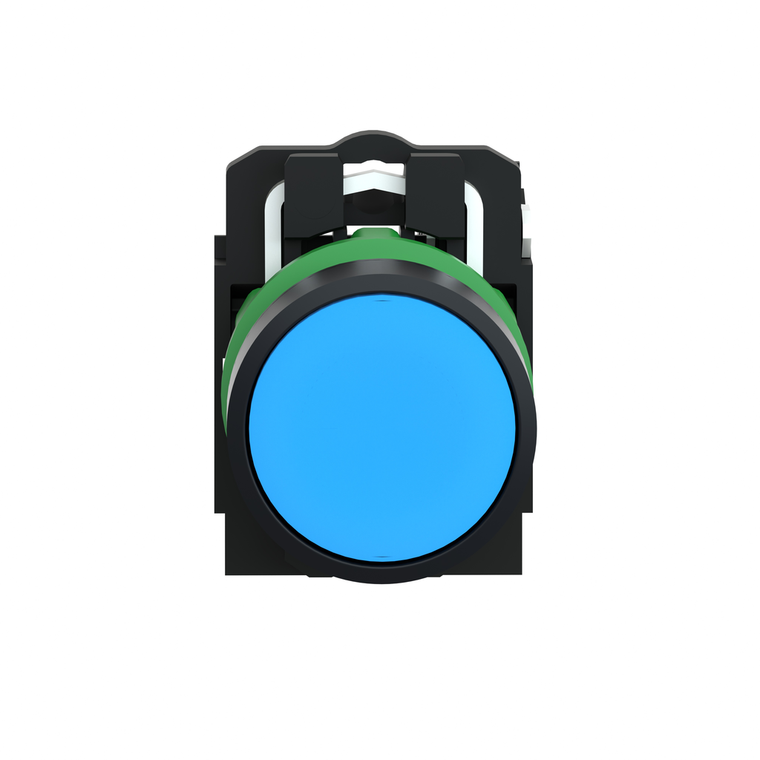

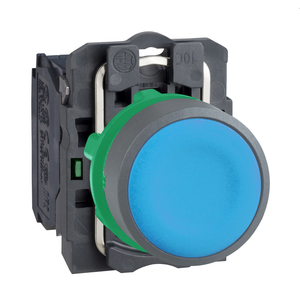

This Harmony XB5, modular blue push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Operating Force:
3.8 N NO changing electrical state
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Contacts Type And Composition:
1 NO
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Bezel Material:
plastic || dark grey plastic
Height:
42 mm
Mounting Diameter:
22 mm
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
China Rohs Regulation:
X
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Reach Free Of Svhc:
Yes
Customizable:
no
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Gcr Bridge:
XB5AACUST01
Mechanical Durability:
10000000 cycles
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation:
-40-70 °C
Head Type:
standard
Type Of Operator:
spring return
Ambient Air Temperature For Storage:
-40-70 °C
Ik Degree Of Protection:
IK03 IEC 50102
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Width:
30 mm
Sustainable Offer Status:
Green Premium product
Standards:
JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
Device Short Name:
XB5
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Positive Opening:
without
Compatibility Code:
XB5
Contacts Usage:
standard contacts
Terminals Description Iso N°1:
(13-14)NO
Overvoltage Category:
class II IEC 60536
Sale Per Indivisible Quantity:
1
Operator Profile:
blue flush, unmarked
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Shape Of Signaling Unit Head:
round
Circularity Profile:
ENVEOLI1710010EN
Fixing Collar Material:
plastic
Mercury Free:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Protective Treatment:
TH
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Product Or Component Type:
push-button
Customizable:
1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation:
complete product
Contact Operation:
slow-break
Product Certifications:
BV || GL || LROS (Lloyds register of shipping) || UL Listed || RINA || CSA || DNV
Range Of Product:
Harmony XB5
Environmental Disclosure:
ENVPEP1710010EN
Depth:
52 mm
Net Weight:
0.037 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Warranty:
18 months
Contacts Material:
silver alloy (Ag/Ni)
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Datasheet:
View
