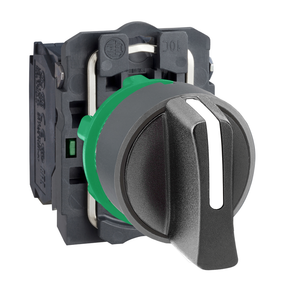

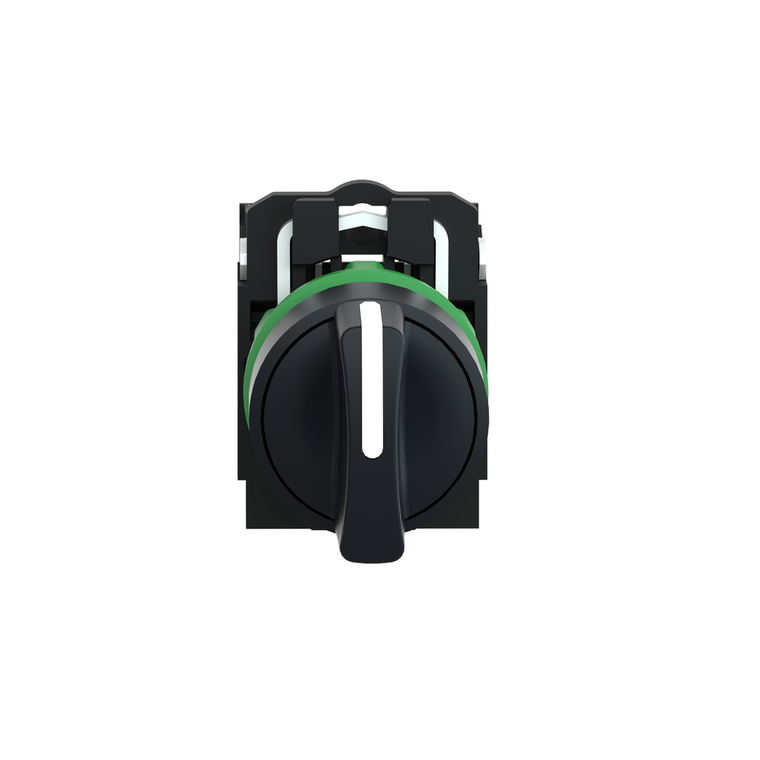

Schneider Electric XB5AD53 Selector Switch

Schneider Electric XB5AD53 Selector Switch

Schneider Electric
SKU:
XB5AD53
|
UPC:
3389110903461
$75.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5, modular black selector switch has 3 positions, operates with a spring-return-to-center mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Head Type:
standard
China Rohs Regulation:
X
Type Of Operator:
to centre spring return
Mechanical Durability:
1000000 cycles
Net Weight:
0.052 kg
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Sustainable Offer Status:
Green Premium product
Product Certifications:
GL || UL || LROS (Lloyds register of shipping) || BV || DNV || CSA
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sale Per Indivisible Quantity:
1
Product Or Component Type:
selector switch
Contacts Type And Composition:
2 NO
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Terminals Description Iso N°1:
(13-14)NO
Electrical Shock Protection Class:
class II IEC 60536
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
42 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Environmental Disclosure:
ENVPEP1710010EN
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Head:
round
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Depth:
70 mm
Mercury Free:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Device Short Name:
XB5
Contacts Usage:
standard contacts
Width:
30 mm
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Material:
silver alloy (Ag/Ni)
Circularity Profile:
ENVEOLI1710010EN
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Standards:
IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Operator Profile:
black standard handle
Bezel Material:
dark grey plastic
Reach Free Of Svhc:
Yes
Range Of Product:
Harmony XB5
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Positive Opening:
without
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Operator Position Information:
3 positions +/- 45°
Contact Operation:
slow-break
Warranty:
18 months
Ik Degree Of Protection:
IK04 IEC 50102
Protective Treatment:
TH
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Torque Value:
0.14 N.m NO changing electrical state
Ambient Air Temperature For Operation:
-40-70 °C
Mounting Diameter:
22 mm
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Device Presentation:
complete product
Ambient Air Temperature For Storage:
-40-70 °C
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free:
Yes
