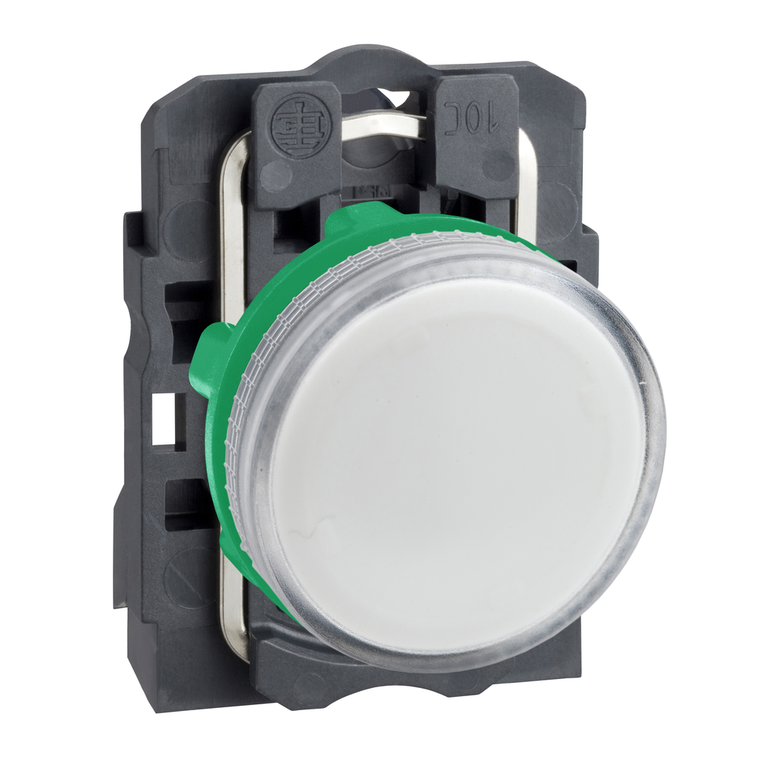

Schneider Electric XB5AV61 Direct Supply Pilot Light

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AV61 Direct Supply Pilot Light

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AV61

UPC:

3389110903966

MPN:

Condition:

New

Device Short Name:

XB5

Ik Degree Of Protection:

IK05 IEC 50102

Bulb Base:

BA 9s

Product Or Component Type:

pilot light

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Circularity Profile:

ENVEOLI1710010EN

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Depth:

55 mm

Warranty:

18 months

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Fixing Collar Material:

plastic

Height:

42 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Operation:

-40-55 °C

Overvoltage Category:

class II IEC 60536

Operator Additional Information:

with plain lens

Signalling Type:

steady

Mounting Diameter:

22 mm

Light Block Supply:

direct <2.4 W

Device Presentation:

complete product

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Cap/Operator Or Lens Colour:

white

Net Weight:

0.037 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Light Source:

bulb not included

Range Of Product:

Harmony XB5

Electrical Shock Protection Class:

class II IEC 60536

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Light Source Colour:

white

Shape Of Signaling Unit Head:

round

Standards:

UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1

[Us] Rated Supply Voltage:

<= 250 V

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ambient Air Temperature For Storage:

-40-70 °C

Protective Treatment:

TH

Width:

30 mm

Product Certifications:

UL Listed || CSA

Bezel Material:

dark grey plastic

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Environmental Disclosure:

ENVPEP1710010EN

Sale Per Indivisible Quantity:

1

China Rohs Regulation:

X

Head Type:

standard

Terminals Description Iso N°1:

(X1-X2)PL

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Catalog:

View

Datasheet:

View
